Mirror Mount, Pint-Sized, 0.5 in. Diameter, 2 Allen-Key Top Adjust

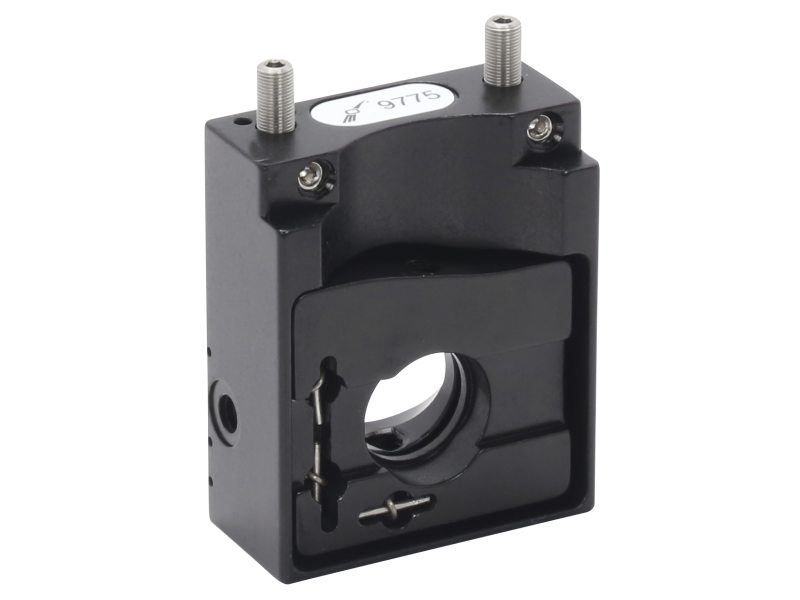

The 9775-K Pint Sized Top Actuated Mirror Mount holds 0.5 in. (12.7 mm) diameter optics, and is ideal for use in compact spaces. It gives you easy access to both tip and tilt adjustments from the Allen-keys on top without worrying about blocking the beam. Top and side mounting schemes are compatible with post and pedestal mounting systems. Relieved bases and thick frames ensure stability, while standard beam heights allow for easy integration into your system. Built-in locks and stiff springs increase long-term stability. 8-32 threaded mounting hole.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
12.7 mm
Number of Actuators
2
Actuator Drive
Hex Key
Actuator Locks
Yes
Adjustment Screw Thread
80 TPI
Adjustments
θx, θy
Sensitivity
4.3 arc sec

Angular Range
±4°
Optic Loading
Front
Material
Anodized Aluminum
Drive Type
Allen-Key, locking
Thread Type
8-32
Optical Axis Height
12.7 mm

Mechanism
Kinematic
Optic Diameter
12.7 mm
Number of Actuators
2
Actuator Drive
Hex Key
Actuator Locks
Yes
Adjustment Screw Thread
80 TPI
Adjustments
θx, θy
Sensitivity
4.3 arc sec

Angular Range
±4°
Optic Loading
Front
Material
Anodized Aluminum
Drive Type
Allen-Key, locking
Thread Type
8-32
Optical Axis Height
12.7 mm

Resources & Downloads

Drawings And Cad

9775c-Drawing(272.3 kB, PDF)
