Optical Beam Sampler, Broadband, UVFS, 25.4 mm, λ/10, 1010-1550 nm

The 10Q20NC.3 Broadband Beam Sampler is a 1.0 inch (25.4 mm) diameter, 6.10 mm thick, UV fused silica beam sampler with a λ/10 surface flatness. It is 1010 to 1550nm anti-reflection coated on the back surface. Our broadband beam samplers are designed to split off or sample a beam by Fresnel reflection for beam monitoring applications where minimum disturbance of the transmitted beam is necessary.

Specifications

Technical Specs

Wavelength Range
1010-1550 nm
Diameter
25.4 mm
Material
UV Grade Fused Silica
Antireflection Coating
NC.3
Angle of Incidence
45°
Damage Threshold
500 W/cm² CW, 1 J/cm² for 10 nsec pulses, typical @ 1064 nm
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture
Surface Quality
15-5 scratch-dig
Diameter Tolerance
+0/-0.13 mm
Thickness
6.1 mm

Thickness Tolerance
±0.38 mm
Wedge
30 ±15 arc min
Clear Aperture
> central 80% of diameter
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics
Substrate Number
10Q20

Wavelength Range
1010-1550 nm
Diameter
25.4 mm
Material
UV Grade Fused Silica
Antireflection Coating
NC.3
Angle of Incidence
45°
Damage Threshold
500 W/cm² CW, 1 J/cm² for 10 nsec pulses, typical @ 1064 nm
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture
Surface Quality
15-5 scratch-dig
Diameter Tolerance
+0/-0.13 mm
Thickness
6.1 mm

Thickness Tolerance
±0.38 mm
Wedge
30 ±15 arc min
Clear Aperture
> central 80% of diameter
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics
Substrate Number
10Q20

Resources & Downloads

Drawings And Cad

BS-1-DWG-S(72.2 kB, PDF)

Other

10Q20NC.3 RoHS Certificate(704.1 kB, PDF)
NC.3 Raw Data.xlsx(77.7 kB, XLSX)

Related Products

Similar

Description	Compatibility	Price
10Q40BS.3Broadband Dielectric Beamsplitter, UVFS, 25.4 mm, λ/20, 1290-1580 nm	UNIVERSAL	$702
10FC16PB.9Cube Beamsplitter, Polarizing, 25.4 mm, 1200-1600 nm	UNIVERSAL	$455
05BC16NP.10Cube Beamsplitter, Non-Polarizing, 12.7 mm, 1300 nm Laser Line	UNIVERSAL	$398
10BC17MB.3Beamsplitter Cube, Non-Polarizing, 25.4 mm, 1100-1600 nm Broadband	UNIVERSAL	$292
10Q20NC.UVUV Broadband Beam Sampler, UVFS, 25.4 mm, λ/10, 255-440 nm	UNIVERSAL	$201

Compatible

Description	Compatibility	Price
9809NFMirror Mount, Classic, Corner, 1.0 in., 3 Knobs	UNIVERSAL	$151

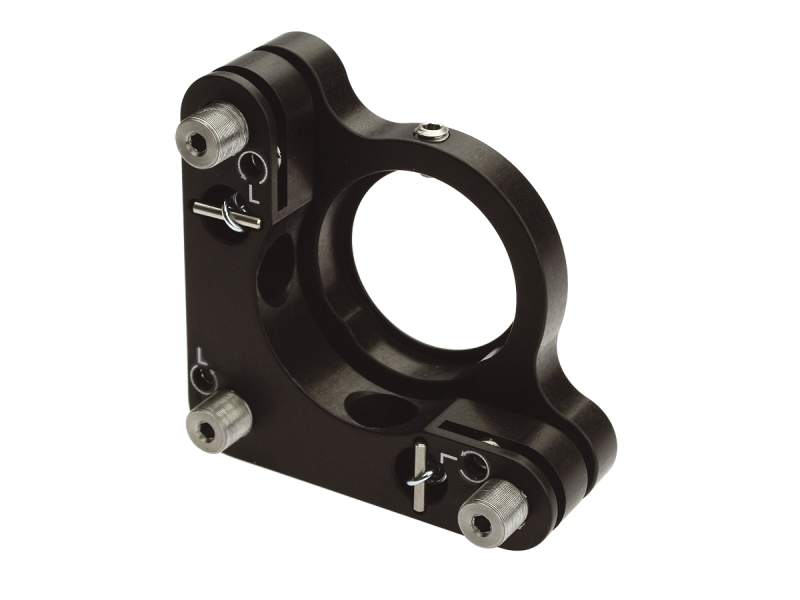

P100-AI31Mirror Mount, PERFORMA-i, 1.0 in., 100 TPI, 3 Locking Allen-Keys	UNIVERSAL	$134
