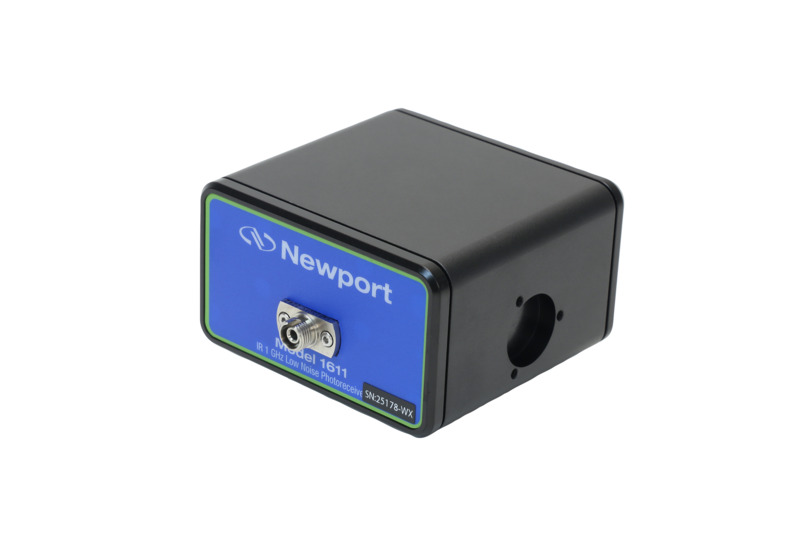

Fiber-Optic Receiver, 900-1700 nm InGaAs, 30 kHz to 850 MHz, FC/PC, AC-Coupled

The 1611FC-AC InGaAs Fiber-Optic Receiver is used for experiments requiring up to 850 MHz bandwidths and 400 ps rise times. This FC/PC connectorized photoreceiver offers a well-balanced combination of gain, bandwidth, and very low noise. The InGaAs detector wavelength range is 900 to 1700 nm. For mounting there is an 8-32 mounting thread, and we also include a M4 metric thread adaptor and tool.

An external ±15 VDC power supply, which must be purchased separately, is required. Power supply cables and are included with each detector.

Specifications

Technical Specs

Device Type
Photoreceiver (AC-Coupled)
Detector Material
InGaAs
Detector Type
PIN
Wavelength Range
900-1700 nm
3 dB Bandwidth
30 kHz to 850 MHz
Optical Input
Fiber-optic
Fiber-Optic Connector
FC/UPC
Fiber Type
Singlemode or Multimode
Maximum Conversion Gain
700 V/W
Maximum Transimpedance Gain
700 V/A
Peak Responsivity
1.0 A/W
NEP
20 pW/√Hz

Rise Time
400 ps
Saturation Power
1 mW
Output Connector
SMA
Output Impedance
50 Ω
DC Bias Monitor Bandwidth
20 KHz
DC Bias Monitor Transimpedance Gain
-10 V/mA
Power Requirements
±15 VDC, 300 mA
Operating Temperature Range
10 - 35 °C, < 70% RH
Thread Type
8-32 (includes M4 adapter)

Device Type
Photoreceiver (AC-Coupled)
Detector Material
InGaAs
Detector Type
PIN
Wavelength Range
900-1700 nm
3 dB Bandwidth
30 kHz to 850 MHz
Optical Input
Fiber-optic
Fiber-Optic Connector
FC/UPC
Fiber Type
Singlemode or Multimode
Maximum Conversion Gain
700 V/W
Maximum Transimpedance Gain
700 V/A
Peak Responsivity
1.0 A/W
NEP
20 pW/√Hz

Rise Time
400 ps
Saturation Power
1 mW
Output Connector
SMA
Output Impedance
50 Ω
DC Bias Monitor Bandwidth
20 KHz
DC Bias Monitor Transimpedance Gain
-10 V/mA
Power Requirements
±15 VDC, 300 mA
Operating Temperature Range
10 - 35 °C, < 70% RH
Thread Type
8-32 (includes M4 adapter)
