Shear Plate Collimation Tester, 50.8 mm, UV Fused Silica

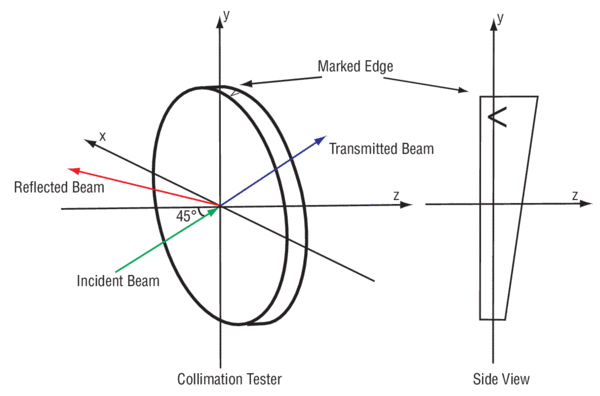

The 20QS20 Shear Plate Collimation Tester is a 2.0 inch (50.8 mm) diameter wedged window that allows for quick testing of collimation by utilizing shearing interferometry. When the collimation tester is aligned at a 45° angle of incidence with respect to the incident beam, an interference pattern is formed. By adjusting the input beam condition and observing the fringe pattern, the collimation of the beam can be accurately obtained.

Specifications

Technical Specs

Diameter
50.8 mm
Material
UV Grade Fused Silica
Wavelength Range
195-2100 nm
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture
Surface Quality
60-40 scratch-dig
Thickness
9.4 mm

Chamfers
0.38–1.14 mm face width
Chamfers Angle/Tolerance
45° ±15°
Clear Aperture
Central 80% of diameter
Diameter Tolerance
+0/-0.25 mm
Antireflection Coating
Uncoated
Wedge
4.4 ± .88 arc sec

Diameter
50.8 mm
Material
UV Grade Fused Silica
Wavelength Range
195-2100 nm
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture
Surface Quality
60-40 scratch-dig
Thickness
9.4 mm

Chamfers
0.38–1.14 mm face width
Chamfers Angle/Tolerance
45° ±15°
Clear Aperture
Central 80% of diameter
Diameter Tolerance
+0/-0.25 mm
Antireflection Coating
Uncoated
Wedge
4.4 ± .88 arc sec
