Intermediate Adaptor Plate, 120 x 120 mm Square, PI120 Series
Intermediate Adaptor Plate, 120 x 120 mm Square, PI120 Series
Model: 338285
Product Series Overview

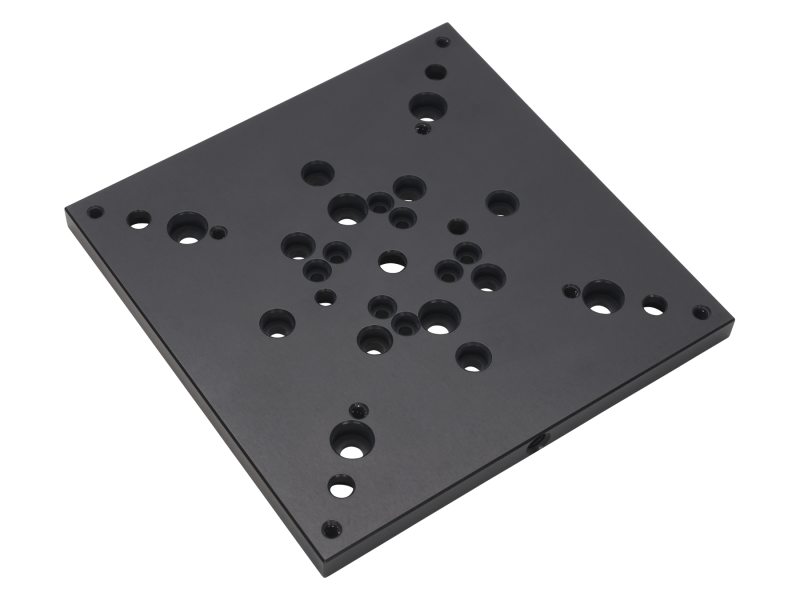

Intermediate Adaptor Plates, PI SeriesThe 338285 Square Intermediate Adaptor Plate is 120 x 120 mm and is designed to allow two components of different sizes and without a common hole pattern to be attached together. It is made of aluminum and compatible with UMR12 stages.
