Intermediate Adaptor Plate, 50 x 50 mm Square, PI50.02 Series

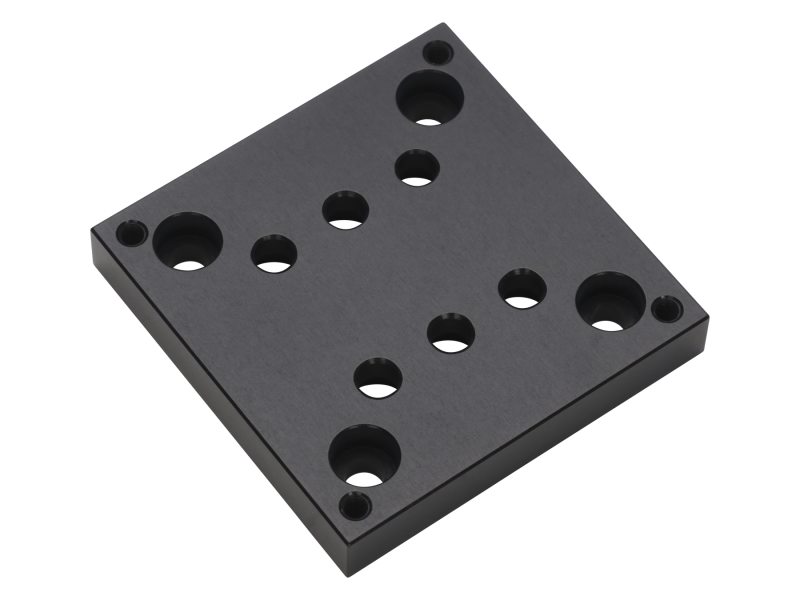

Intermediate Adaptor Plates, PI Series

Intermediate Adaptor Plates, PI Series

The 338282 Square Intermediate Adaptor Plate is 50 x 50 mm for the PI50.02 Series.

Specifications

Technical Specs

Type
Intermediate Adaptor Plate
Dimensions
50 x 50 mm

Use
UMR and UTR Stages

Type
Intermediate Adaptor Plate
Dimensions
50 x 50 mm

Use
UMR and UTR Stages

Resources & Downloads

3D Product Models

2D Product Drawings

PI50-02-S(75.8 kB, PDF)
