Intermediate Adaptor Plate, Round, Φ65 mm, PI50.01 Series
Intermediate Adaptor Plate, Round, Φ65 mm, PI50.01 Series
Model: 338293
Product Series Overview

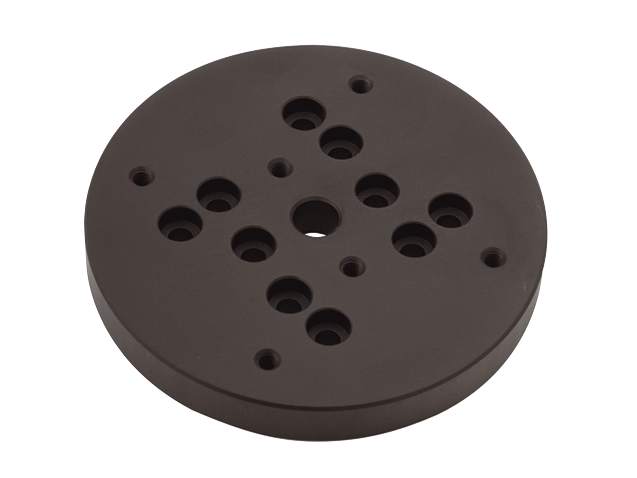

Intermediate Adaptor Plates, PI SeriesThe 338293 Round Intermediate Adaptor Plate is 65 mm in diameter and is designed to allow two components of different sizes and without a common hole pattern to be attached together. It is made of aluminum and compatible with UMR5 stages.
Resources & Downloads
Drawings And Cad
PI50-01-S(93.6 kB, PDF)
