Intermediate Adaptor Plate, Round, Φ105 mm, PI86.01 Series
Intermediate Adaptor Plate, Round, Φ105 mm, PI86.01 Series
Model: 338294
Product Series Overview

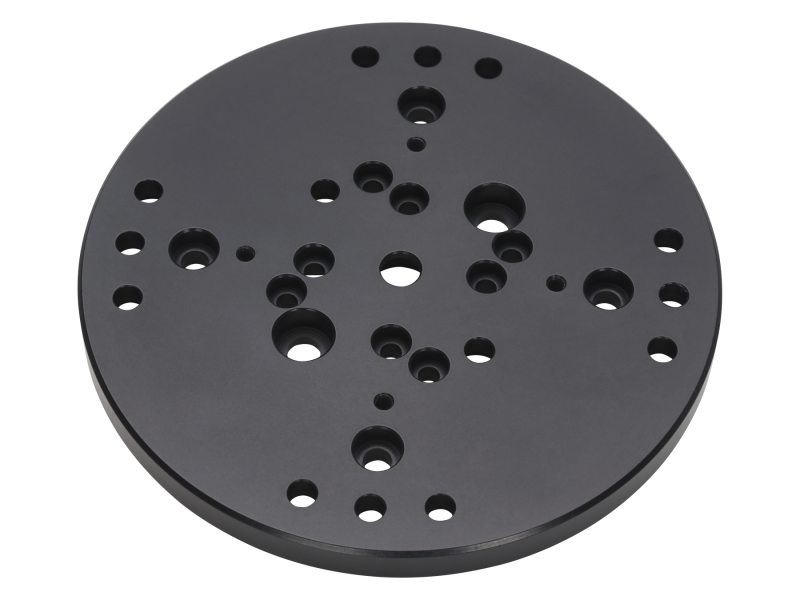

Intermediate Adaptor Plates, PI SeriesThe 338294 Round Intermediate Adaptor Plate is 105 mm in diameter and is designed to allow two components of different sizes and without a common hole pattern to be attached together. It is made of aluminum and compatible with UMR8 stages.
