Grin Lens Holder, 466A Series

Flexure Fiber Alignment Stage Accessories

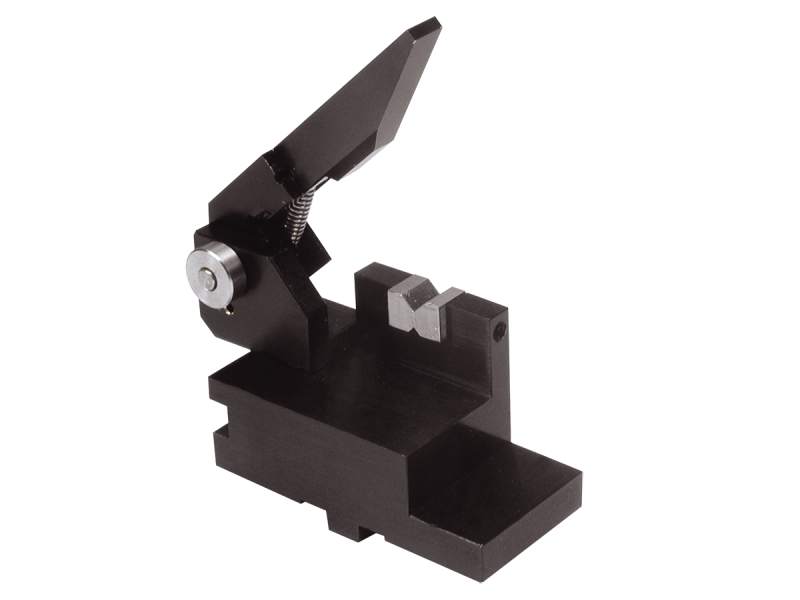

The 466A-734 Grin Lens Holder has a 4 mm long reversible V-block. It holds GRIN lenses 1 to 2 mm or 2 to 3 mm in diameter. Compatible with the 466A Series Flexure Stages.

Resources & Downloads

3D Product Models

2D Product Drawings

466A-734-276(99.7 kB, PDF)
