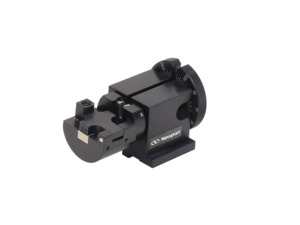

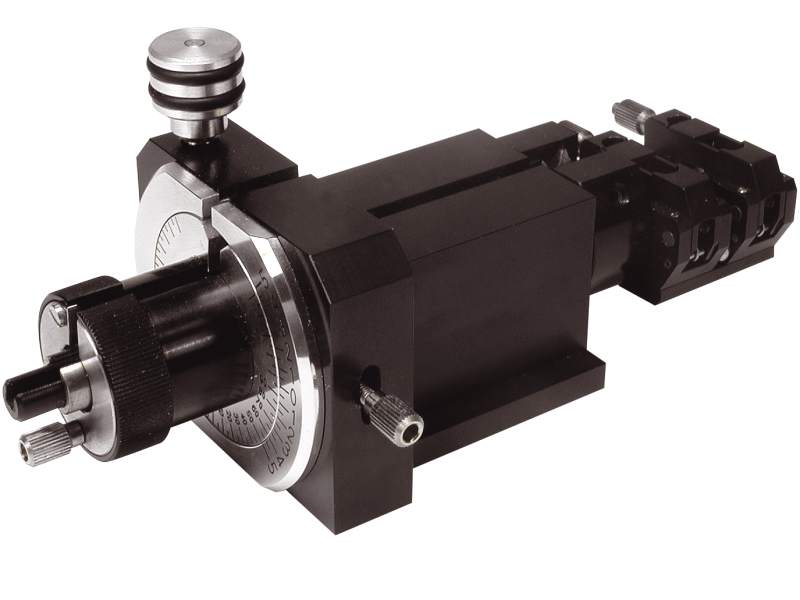

Designed for the most demanding rotation and alignment of angular sensitive components, 466A-717 and 466A-718 fiber rotators have a slotted design for easy insertion and removal of fiber and a full 360° coarse adjustment range.

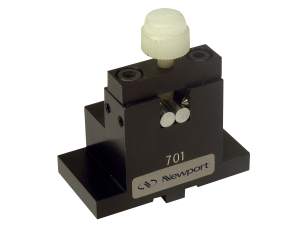

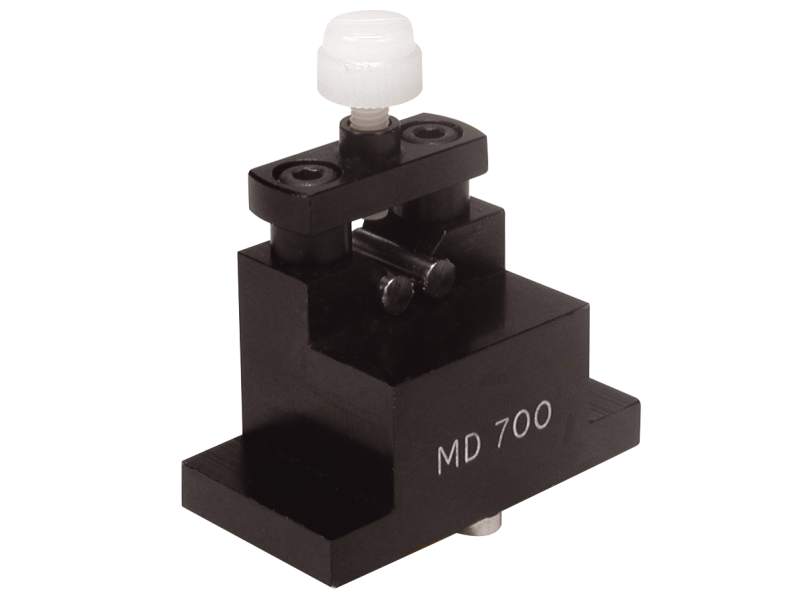

466A-700 and 466A-701 ferrule fiber holders secure optical fibers terminated with a cylindrical ferrule and can also be used to hold GRIN lenses. They use a "V" groove formed by two 9 mm long stainless steel rods. A Nylon clamp screw avoids damage to the component being held.

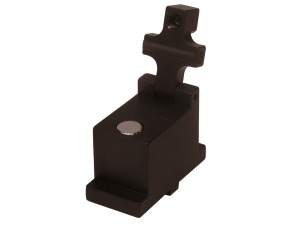

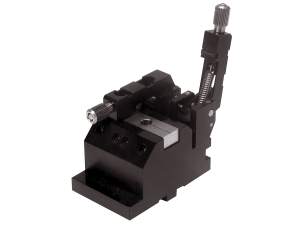

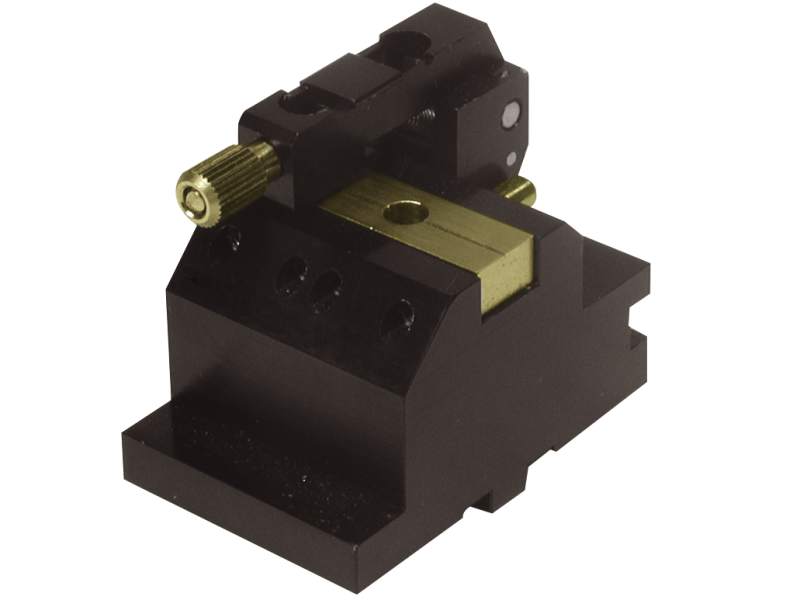

We offer 466A-709 single arm, 466A-710 dual arm, and 466A-711 magnetic single arm bare fiber holders for securing and positioning 125/250 µm stripped fibers.

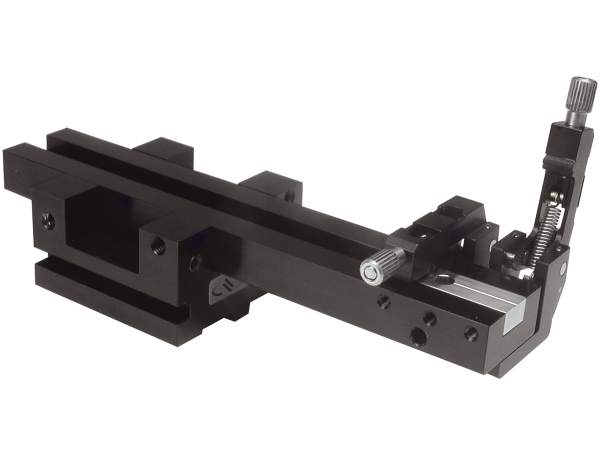

466A-750 long-reach fiber holder works with 125/250 µm bare optical fibers. It allows locating fibers offset from the central axis. The fiber is held in user-replaceable double V-groove by spring clamps. The clamp arm swings clear of V-groove for easy loading/unloading and has a force adjustable from 25-125 g. The contact point on fiber is a resilient pad.

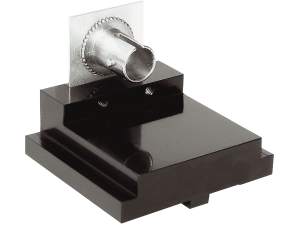

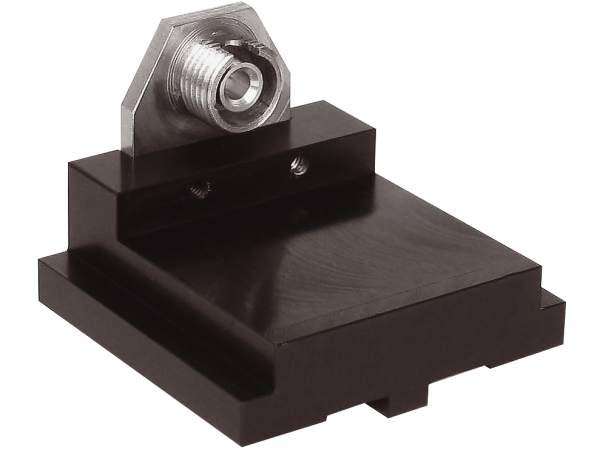

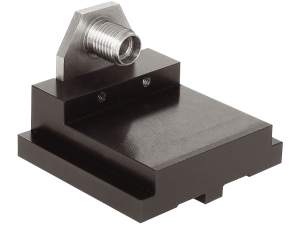

466A-735, 466A-736 and 466A-737 fiber holders allow for the easy insertion and removal of FC, SMA and ST connectorized fibers.

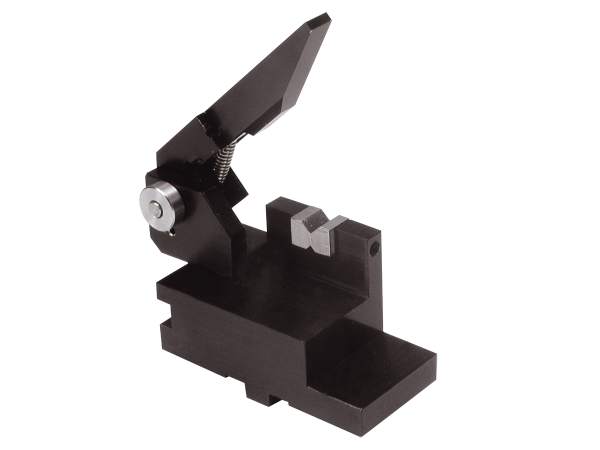

466A-734 GRIN lens holders can hold 1-2 mm and 2-3 mm in diameter GRIN lenses. They feature a 4 mm long reversible V-block.

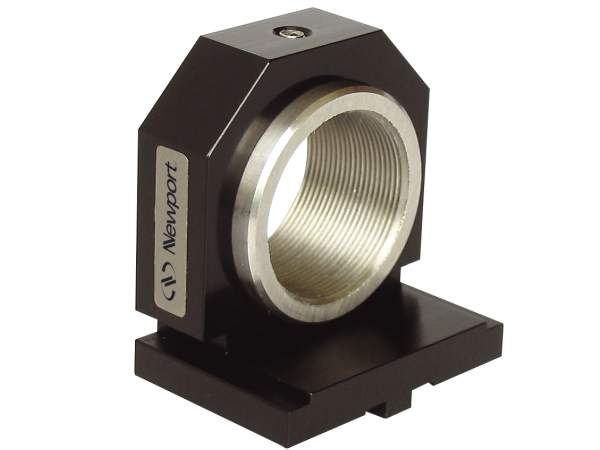

466A-150 objective mount is fitted with a removable stainless steel sleeve cut with the microscope objective thread. It offers easy adjustment and exchange of objectives or other components having a standard RMS 0.800-36 thread.

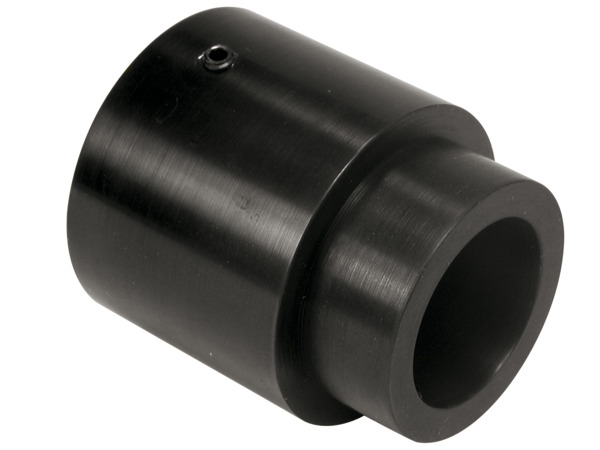

466A-156 extension tube is for use on the 466A-150 Objective Mount. It extends the reach by 25 mm allowing for access to components on wide platforms.

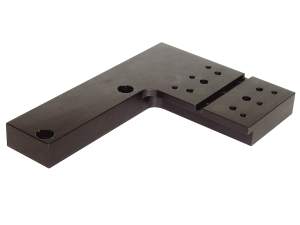

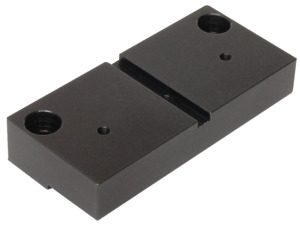

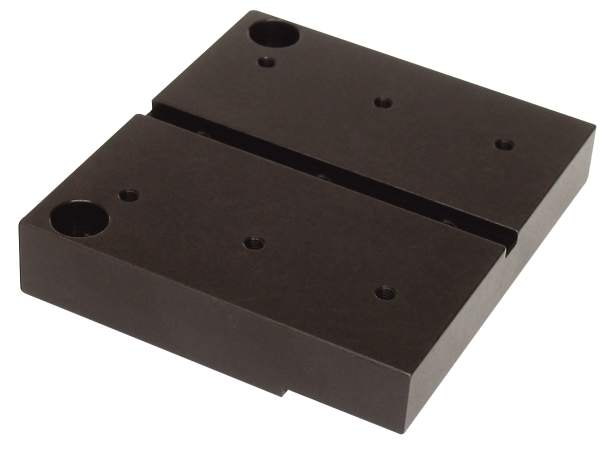

466A-147, 466A-148 and 466A-149 fixed brackets attach to the steady vertical pillar on the flexure stage using two screws. They provide a convenient rigid surface for mounting standard 466A accessories for alignment with items on the moving top plate of the flexure stage. They are available in imperial and metric versions.

466A-189 universal platform provides a simple fixed platform for mounting standard devices and fiber holders. It can be used with the 466A-147, 466A-148 and 466A-149 fixed brackets. It is bolted directly to an optical breadboard and provides an optical height of 94 mm which is compatible with the 466A Series Flexure Stages.

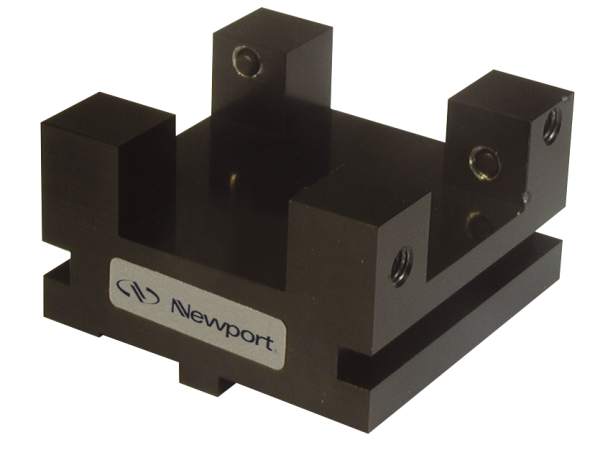

466A-752 universal base holds components on top of flexure stages. It can be located in either of the two orthogonal slots on the top plate for offset component mounting.

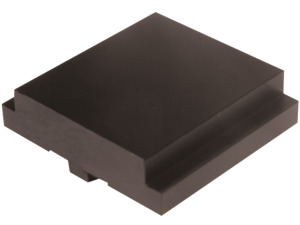

466A-153 component plate provides a basic platform for mounting of non-standard components.

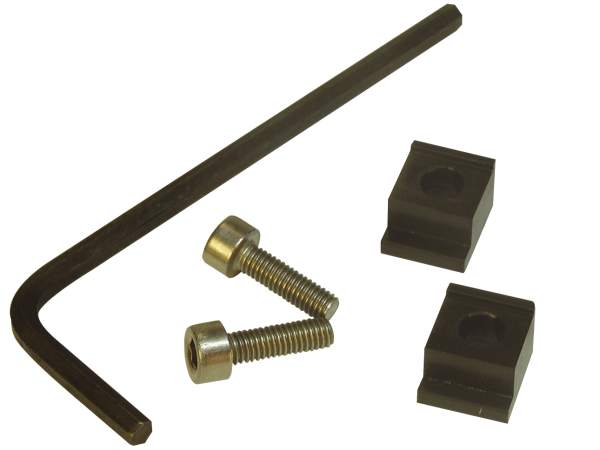

466A-154 clamp set is for use with 466A Series Flexure Stages and Accessories. One Clamp Set is included with all 466A flexure stages and with the 466A-147, 466A-148, and 466A-149 brackets. The set is available in imperial and metric versions.
