Ferrule Fiber Holder, 2 to 4.5 mm Diameter, 466A Series
Ferrule Fiber Holder, 2 to 4.5 mm Diameter, 466A Series
Model: 466A-700
Product Series Overview

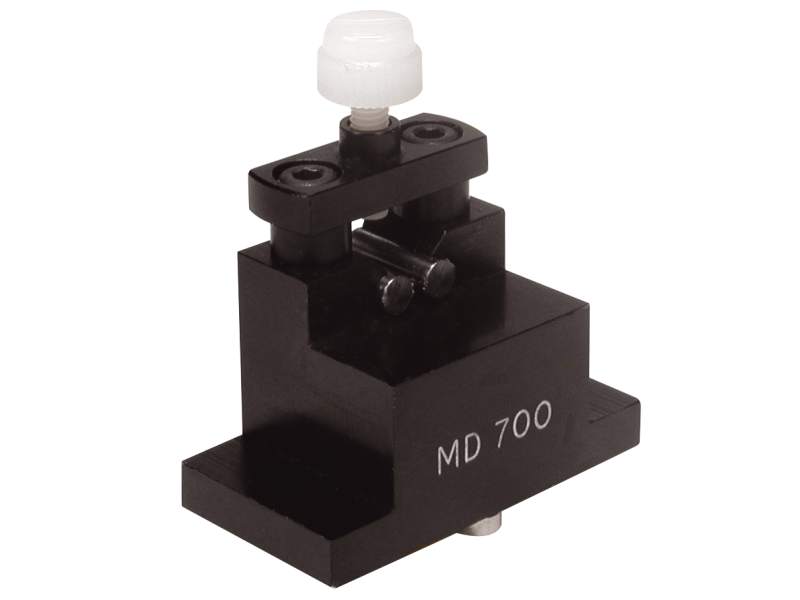

Flexure Fiber Alignment Stage AccessoriesThe 466A-700 Fiber Ferrule Holder holds optical fibers terminated with a 2 to 4.5 mm cylindrical ferrule. It can also be used to hold GRIN lenses. A V-groove is formed by two stainless steel rods 9 mm long. Nylon clamp screw avoid damage to the component being held. Compatible with the 466A Series Flexure Stages.
Resources & Downloads
Drawings And Cad
466A-700-269(101.9 kB, PDF)
