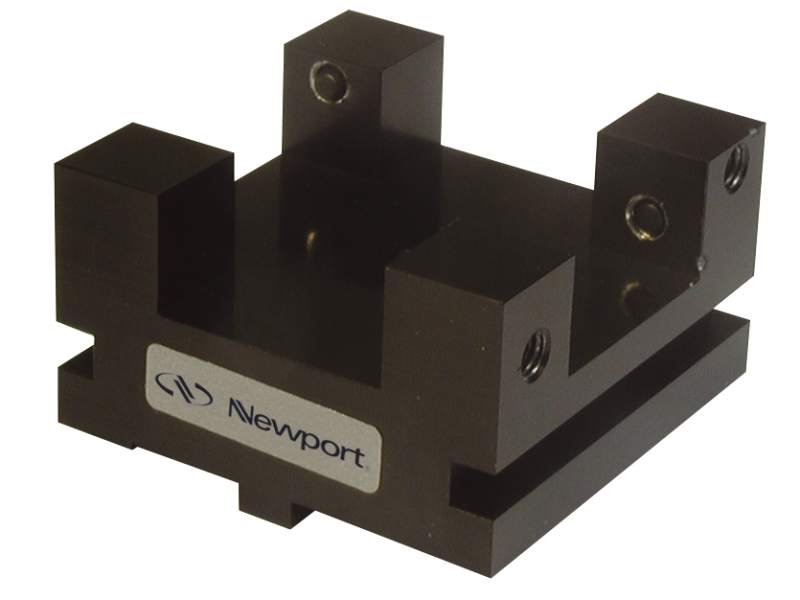

Universal Base, 466A Series

Flexure Fiber Alignment Stage Accessories

The 466A-752 Universal Base holds components on top of 466A flexure stages. It locates in either of the two orthogonal slots on top plate for offset component mounting. Compatible with the 466A Series Flexure Stages.

Specifications

Technical Specs

Type
Universal Base

Type
Universal Base

Resources & Downloads

Drawings And Cad

466A-752-279(109.4 kB, PDF)
