Bare Fiber Holder, Dual Arm, 466A Series

Flexure Fiber Alignment Stage Accessories

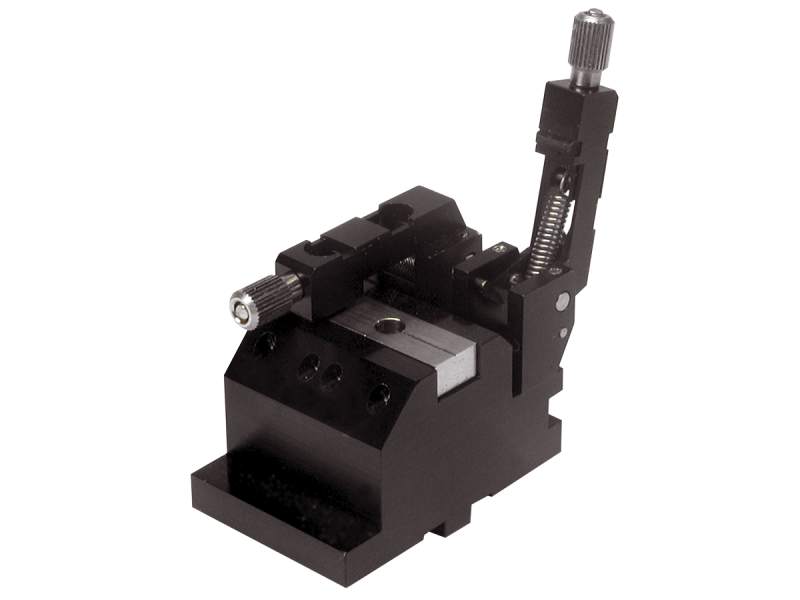

The 466A-710 Double Arm Bare Fiber Holder has double V-grooves for repeatable fiber placing. Two clamp arms with 25 to 125 g adjustable clamping force swing clear of V-groove for easy loading and unloading of the fiber. Compatible with the 466A Series Flexure Stages.

Resources & Downloads

3D Product Models

2D Product Drawings

466A-710-272(170.4 kB, PDF)
