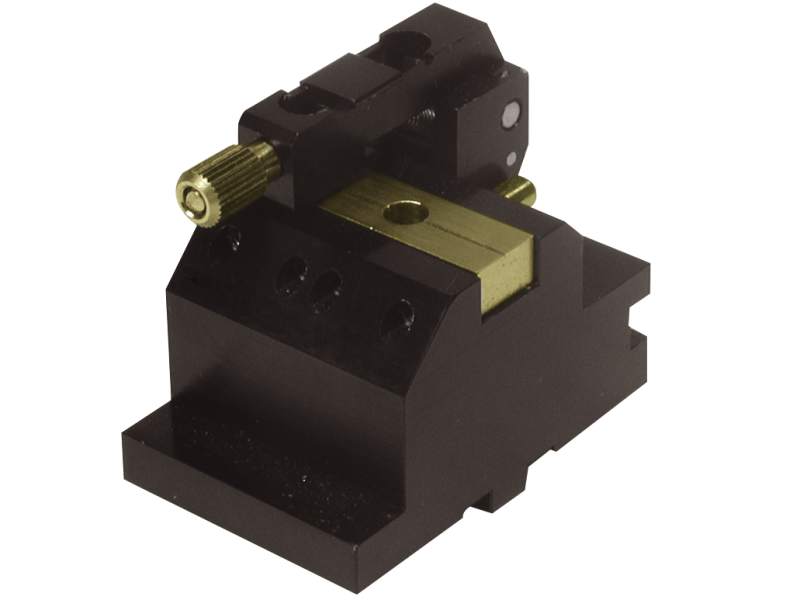

Bare Fiber Holder, Single Arm, 466A Series

Flexure Fiber Alignment Stage Accessories

The 466A-709 Single Arm Bare Fiber Holder has double V-grooves for repeatable fiber placing. A single clamp arm with 25 to 125 g adjustable clamping force swings clear of V-groove for easy loading and unloading of the fiber. Compatible with the 466A Series Flexure Stages.

Resources & Downloads

3D Product Models

2D Product Drawings

466A-709-271(131.6 kB, PDF)
