Ferrule Fiber Holder, 1 to 2 mm Diameter, 466A Series

Flexure Fiber Alignment Stage Accessories

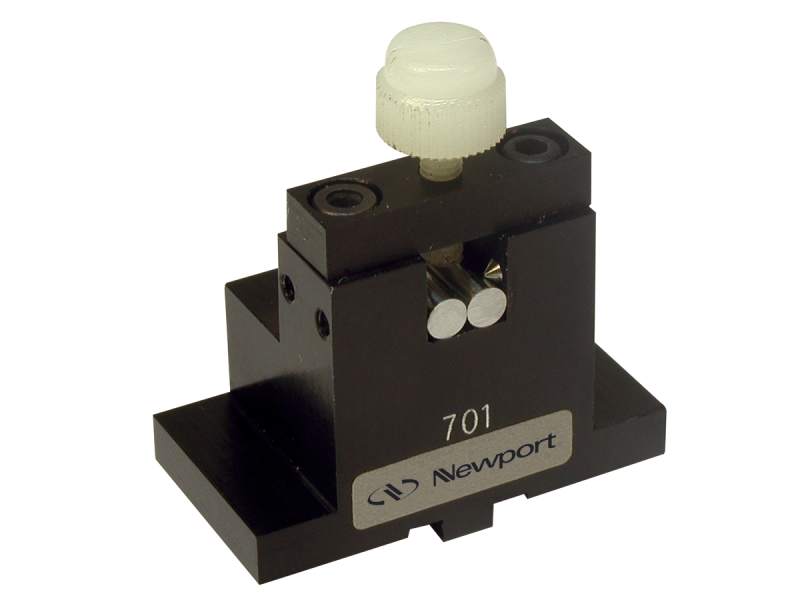

The 466A-701 Fiber Ferrule Holder holds optical fibers terminated with a 1 to 2 mm cylindrical ferrule. It can also be used to hold GRIN lenses. A V-groove is formed by two stainless steel rods 9 mm long. Nylon clamp screw avoid damage to the component being held. Compatible with the 466A Series Flexure Stages.

Resources & Downloads

3D Product Models

2D Product Drawings

466A-701-270(102.2 kB, PDF)

Related Products

Accessories

Description	Compatibility
Clamp Set, 466A Stage, Inc. 2 Clamps, 2 Screws & Allen Wrench	IMPERIAL	Learn More
Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	Learn More
Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	Learn More
Socket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805	UNIVERSAL	Learn More
Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	Learn More

Similar

Description	Compatibility
Ferrule Fiber Holder, 2 to 4.5 mm Diameter, 466A Series	UNIVERSAL	Learn More
Bare Fiber Holder, Single Arm, 466A Series	UNIVERSAL	Learn More
Bare Fiber Holder, Dual Arm, 466A Series	UNIVERSAL	Learn More
Bare Fiber Holder, Single Arm, Magnetic, 466A Series	UNIVERSAL	Learn More
Optical Fiber holder, FC Connector, 466A Series	UNIVERSAL	Learn More

Compatible

Description	Compatibility
Fiber Alignment Stage, Right-Handed, Flexure, 2 mm XYZ Travel, 6-32	IMPERIAL	Learn More
Large Fixed Bracket, Slot Length 60mm, 466A	IMPERIAL	Learn More
Component Plate, 466A Series	UNIVERSAL	Learn More
Universal Base, 466A Series	UNIVERSAL	Learn More
Fiber Alignment Stage, Left-handed, Flexure, 2 mm XYZ Travel, 6-32	IMPERIAL	Learn More
