L-Shaped Bracket, Slot Length 46mm, 466A

Flexure Fiber Alignment Stage Accessories

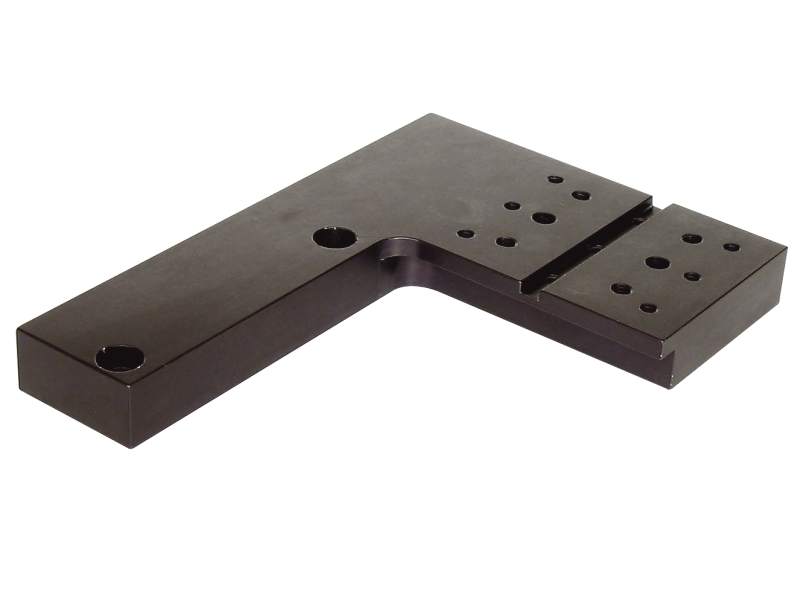

The 466A-149 L Shaped Bracket has a 46 mm length slot and 6-32 tapped holes. It is used for mounting accessories along Y axis of 466A flexure stages. Includes 466A-154 clamp set.

Specifications

Technical Specs

Thread Type
6-32

Thread Type
6-32

Resources & Downloads

3D Product Models

2D Product Drawings

466A-149-264(215 kB, PDF)
