Small Fixed Bracket, Slot Length 20mm, 466A

Flexure Fiber Alignment Stage Accessories

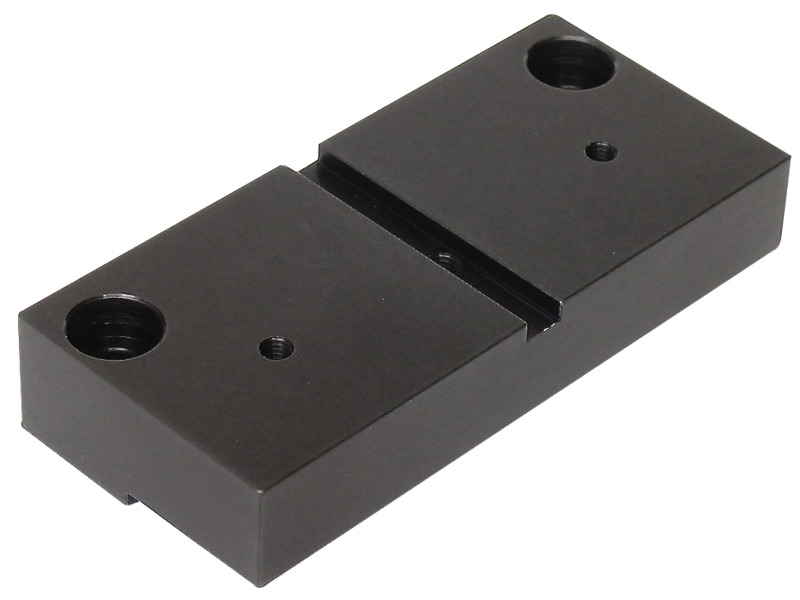

The 466A-148 Small Fixed Bracket has a 20 mm length slot and 6-32 tapped holes. It is used for mounting accessories along X axis of M-466A flexure stages. Includes 466A-154 clamp set.

Specifications

Technical Specs

Thread Type
6-32
Type
Small Fixed Bracket

Thread Type
6-32
Type
Small Fixed Bracket
