L-Shaped Bracket, Slot Length 46mm, M-466A

Flexure Fiber Alignment Stage Accessories

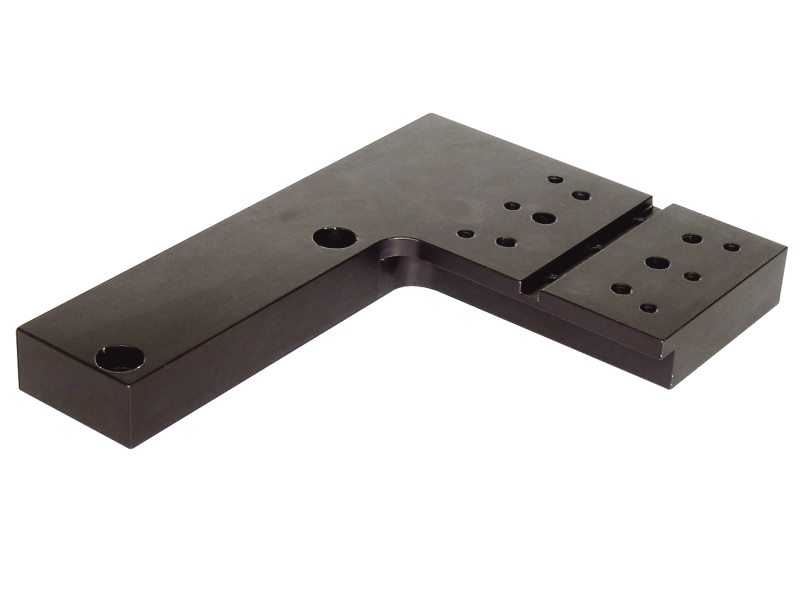

The M-466A-149 L Shaped Metric Bracket has a 46 mm length slot and M4 tapped holes. It is used for mounting accessories along Y axis of M-466A flexure stages. Includes M-466A-154 clamp set.

Specifications

Technical Specs

Thread Type
M4

Thread Type
M4

Resources & Downloads

3D Product Models

2D Product Drawings

466A-149-264(215 kB, PDF)
