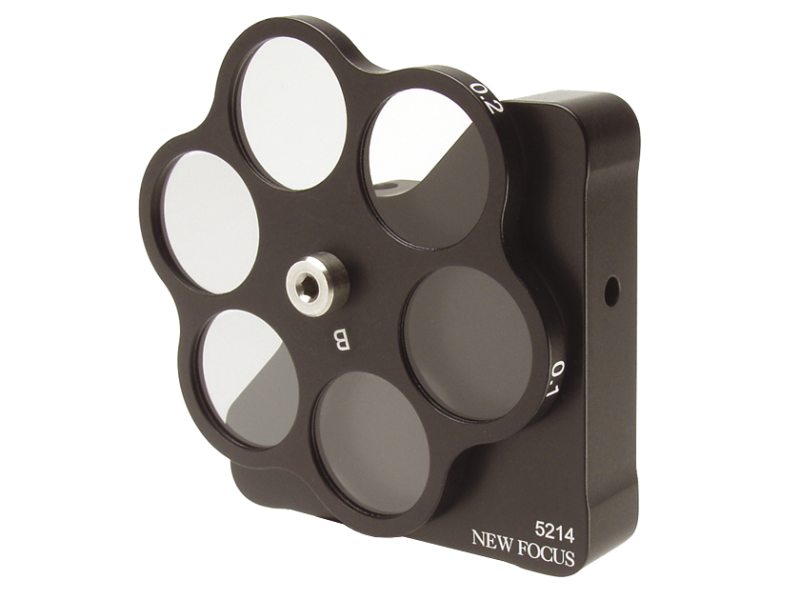

ND Filter Wheel, Six 1.0 in. Filters Pre-Loaded, 0.04-0.5 OD

The 5214-B wheels contain a set of neutral-density (ND) filters mounted in a single easy-to-use unit. The Model 5214 is a single-wheel version. Each wheel includes six 1 in. diameter filters. The filter positions are mechanically indexed for precise positioning and the filters are made with Inconel metallic coatings on glass substrate. These wheels are metric compatible. The filters included with this set are the , , , , and .

Specifications

Technical Specs

Filter Shape
Round
Filter Diameter
25.4 mm
Number of Filters
6
Filter Type
Neutral Density
Mechanism
Epoxy Mounted
Mounting Threads
8-32 (M4) Thru

Clear Aperture
24.1 mm
Material
Anodized Aluminum
Filter Size Circular or Square
25.4 mm

Filter Shape
Round
Filter Diameter
25.4 mm
Number of Filters
6
Filter Type
Neutral Density
Mechanism
Epoxy Mounted
Mounting Threads
8-32 (M4) Thru

Clear Aperture
24.1 mm
Material
Anodized Aluminum
Filter Size Circular or Square
25.4 mm

Resources & Downloads

Drawings And Cad

5214b-Drawing(99.7 kB, PDF)
