Neutral Density Filter Wheels
Neutral Density Filter Wheels
Our ND filter wheels are available in a 6-position single wheel version or a 12 position dual wheel version.
- Available empty or with pre-loaded ND Filters
- Wide range of optical densities possible
- More accurate than variable ND filters
- Easy filter exchange & fast indexed positioning
- Universal mounting See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

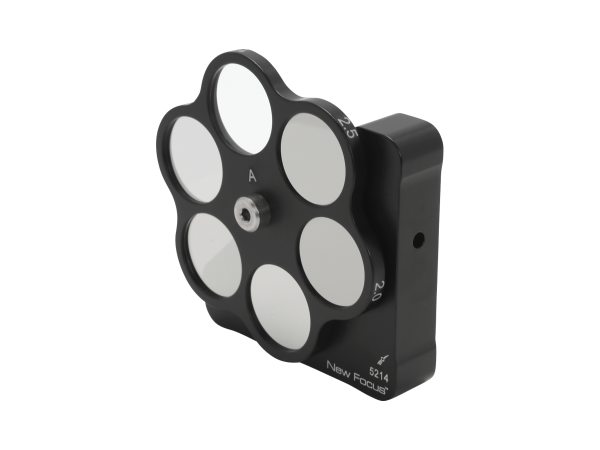

 | 5214-A Neutral Density Filter WheelsND Filter Wheel, Six 1.0 in. Filters Pre-Loaded, 0.04-2.5 OD | |||||

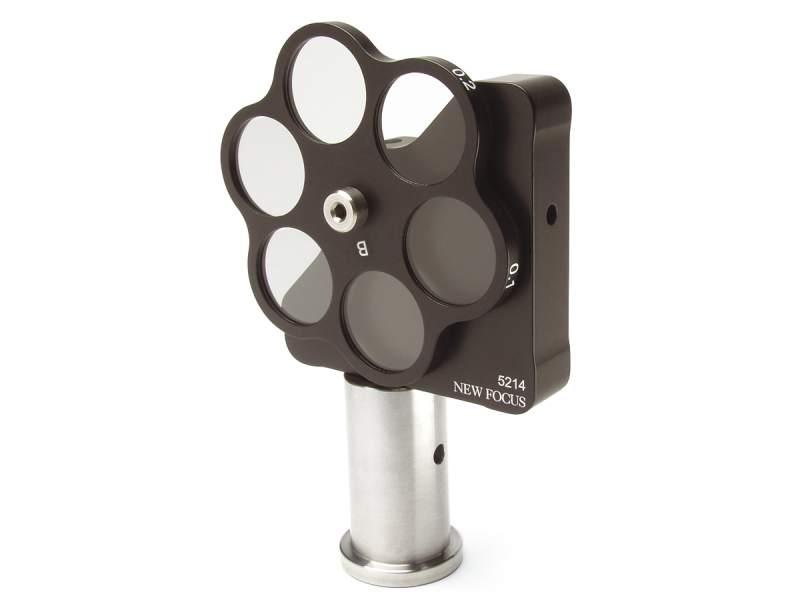

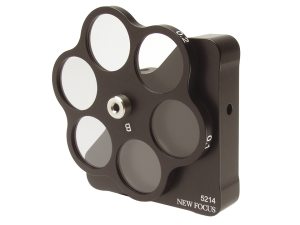

 | 5214-B Neutral Density Filter WheelsND Filter Wheel, Six 1.0 in. Filters Pre-Loaded, 0.04-0.5 OD | |||||

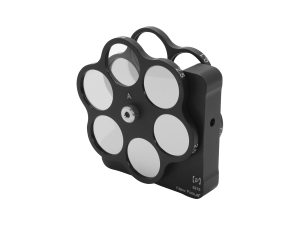

 | 5215 Neutral Density Filter WheelsDual ND Filter Wheel, Twelve 1.0 in. Filters Pre-Loaded, 0.08-3.0 OD | |||||

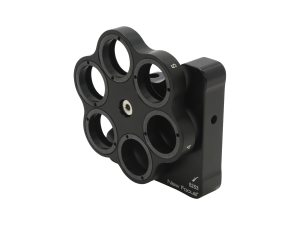

 | 5253NF Neutral Density Filter WheelsIndexed Filter Wheel, Six Position, 1.0 in. Diameter | |||||
 | 5254NF Neutral Density Filter WheelsIndexed Filter Wheel, Dual Six Position, 1.0 in. Diameter |
Features

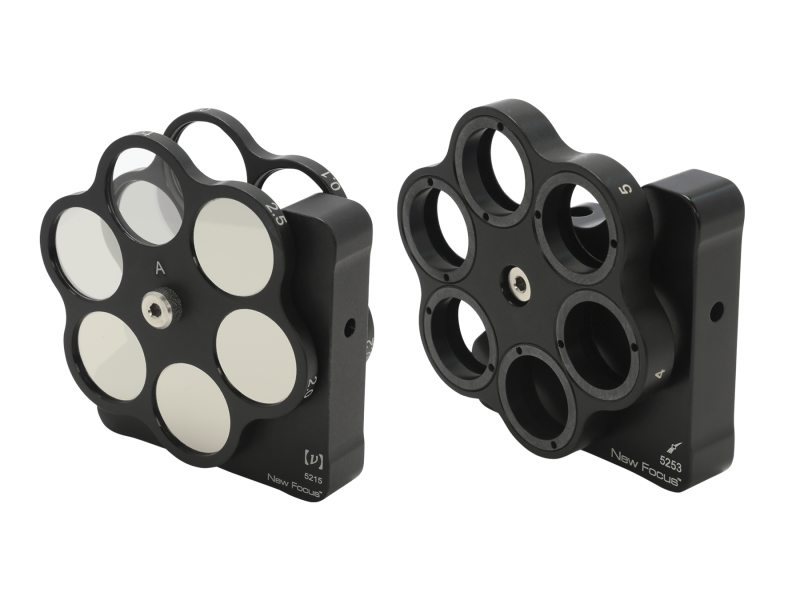

Order Wheels Preloaded or Empty
Pre-loaded Filter Wheels
Our 5214 and 5215 pre-loaded wheels include 1.0 inch diameter filters made with Inconel metallic coatings on glass substrates. The filters are permanently built-into the filter wheel with epoxy. The filter positions are mechanically indexed for precise positioning. We mount the filters at a slight angle to reduce étalon effects, although there will be some residual étalon effects for beam diameters greater than a few millimeters.

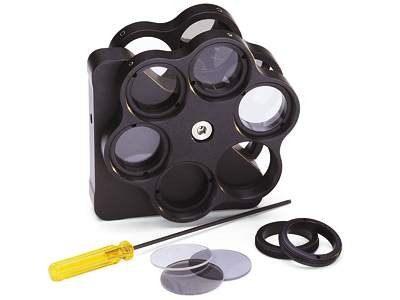

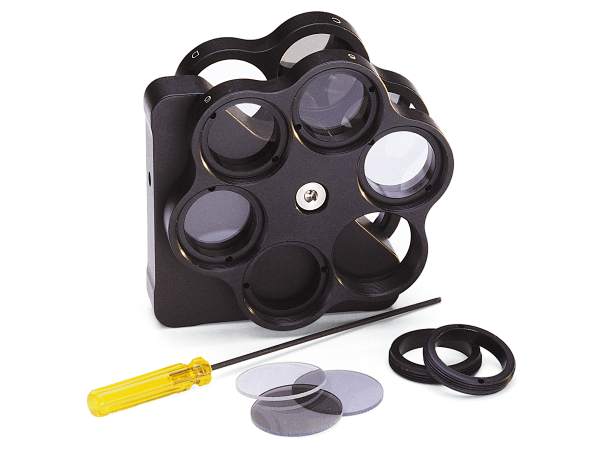

Empty Filter Wheels
The 5253 and 5254 empty wheels safely hold individual filters in place by the included retaining rings which feature 1.040-32 thread and 20.7 mm clear aperture. This makes changing individual filters quick and easy. The filter positions are mechanically indexed for precise positioning.
Universal Optical Post or Pedestal Mounting
