V-Groove Module, 3 & 3.25 mm

ULTRAlign Fiber Alignment Accessories

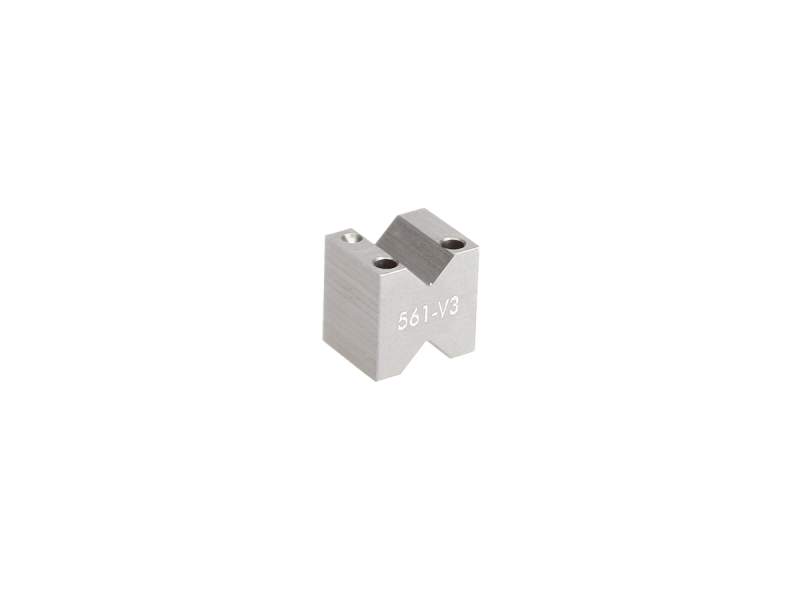

The 561-V3 V-Groove Module attaches 3 and 3.25 mm diameter cylindrical devices to a 561 Series stage. Ideal for GRIN lenses, fiber collimators, and fiber ferrules, the module can be gently held in a 561-MM Module Mount.

Specifications

Technical Specs

Material
Aluminum

Material
Aluminum

Resources & Downloads

Drawings And Cad

561-V3-ENV-S(183.9 kB, PDF)

Other

561-V3_RoHS2021.pdf(684.4 kB, PDF)
