With the wide range of accessories specifically designed for the 561 and 562 Series Fiber Alignment Stages, precision alignment of bare and connectorized fibers is adaptable to meet the needs even of obscure or constrained optical systems. Some of the more than 30 accessories available include fiber holders and positioners; GRIN Lens and objective mounts; a variety of platforms; and a vacuum waveguide mount with eight vacuum ports.
- Full range of accessories specifically for 561/562 fiber alignment stages
- Mounts securely clamp to alignment stage rail system
- Lens mounts, platforms, adapters, fiber chucks & positioners
- Vacuum port waveguide mount also available See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 561-FHBare Fiber Holder, 125 µm Fibers, 561 Series | |||||
 | 561-FCFiber Chuck Holder, 0.25 inch, 561 Series | |||||
 | 561-RFCFiber Chuck Rotation Mount, 561 Series | |||||
 | 561-GMGimbal Fiber Chuck Positioner, 561 Series, 3 Rotation Axis | |||||
 | 561-FCHConnectorized Fiber Holder, FC, 561 Series | |||||
 | 561-SCHConnectorized Fiber Holder, SC, 561 Series | |||||
 | 561-LCHConnectorized Fiber Holder, LC, 561 Series | |||||
 | 561-FCA3Connectorized Fiber Holder, SMA, Rotation, 561 Series | |||||
 | 561-FCA4Connectorized Fiber Holder, FC, Rotation, 561 Series | |||||
 | 561-FCA6Connectorized Fiber Holder, ST, Rotation, 561 Series | |||||
 | 561-FCA9Connectorized Fiber Holder, SC, Rotation, 561 Series | |||||
 | 561-PCHMounting Kit, Photonic Crystal Fiber, 561 Series | |||||
 | 561-PCH-MOptical Fiber Mount, Photonic Crystal Fiber, 561 Series | |||||
 | 561-PCH-VV-Block, Photonic Crystal Fiber, 561 Series | |||||
 | 561-MMOptical Module Mount, 561 Series | |||||
 | 561-V1V-Groove Module, 1–1.75 mm | |||||
 | 561-V2V-Groove Module, 2–2.75 mm | |||||
 | 561-V3V-Groove Module, 3 & 3.25 mm | |||||
 | 561-BL1Ball Lens Module, 1 mm, 561 Series | |||||
 | 561-BL2Ball Lens Module, 2 mm, 561 Series | |||||
 | 561-BL3Ball Lens Module, 3 mm, 561 Series | |||||
 | 561-GRLens Mount, Gradient Index (GRIN), 561 Series | |||||
 | 561-GBMBlank, GRIN Lens Mount, 561 Series | |||||
 | 561-OBJObjective Lens Mount, 561 Series | |||||
 | 561-OBMBlank, Objective Lens Mount | |||||
 | 561-VHVacuum Waveguide Mount, 561 Series | |||||
 | 561-UMUniversal Module, 561/562 Rail | |||||
| M-561-UMUniversal Module, Metric | |||||
 | 561-USTFixed Platform, Universal Stand, 561 Series | |||||
 | 562-USTFixed Platform, Universal Stand, 562 Series | |||||
 | 561-TSFixed Platform, Narrow Profile T-Stand, 561 Series | |||||
 | 562-TSFixed Platform, Narrow Profile T-Stand, 562 Series | |||||
 | 561-ADPTAdaptor, Raises 561 Stage to 562 Height, 0.75 in. | |||||
 | 561-RAIL-1Dovetail Rail, ULTRAlign Series, 1.0 in. Length | |||||

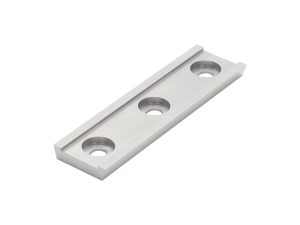

 | 561-RLDovetail Rail, ULTRAlign Series, 2.6 in. Length | |||||
 | 562-RAIL-3.7Dovetail Rail, ULTRAlign Series, 3.7 in. Length |
Features
Bare Fiber Holder
Our bare fiber holder 561-FH offers an improved design for 125 µm diameter bare fibers. The fiber is gently held in precision V-groove.
Fiber Chuck Holder
Our fiber chuck holder 561-FC is designed to hold 0.25 in. (6.35 mm) diameter fiber chucks. It mounts all Newport Fiber Chucks and Holders.
Fiber Chuck Rotation Mount
Our fiber chuck rotation mount 561-RFC is designed to hold 0.25 in. (6.35 mm) diameter fiber chucks. It offers rotation of 360° in θx, and a sensitivity of 2°.
Gimbal Fiber Chuck Positioner
Our gimbal fiber chuck positioner 561-GM is designed to hold 0.25 in. (6.35 mm) diameter fiber chucks. It offers rotation of 360° in θX and tilt of ±5° in θYθZ with a Sensitivity of 2° in θX, 12 arc sec in θYθZ.
Connectorized Fiber Holders
Our connectorized fiber holders 561-xCH are used to mount FC, SC, or LC connectorized fibers.

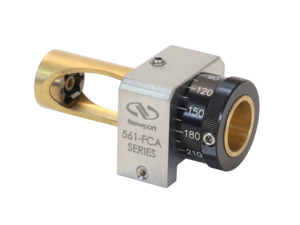

Connectorized Fiber Holders with Rotation
These connectorized fiber holders 561-FCAx allow fibers to be rotated 360° in the holder. They are compatible with SMA, FC, ST, or SC connectorized fibers.
Photonic Crystal Fiber Mount

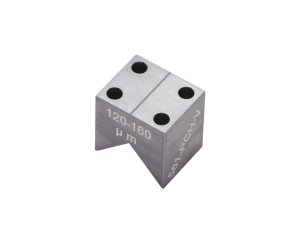

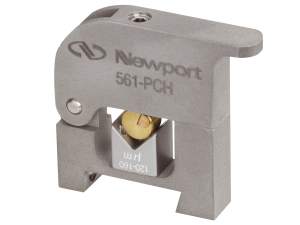

The 561-PCH(-M) mounts are designed to hold short lengths of Photonic Crystal Fiber. They have a V-groove accepts 120-160 µm diameter bare fibers or a small fiber chuck that accepts 80-200 µm diameter bare fibers.

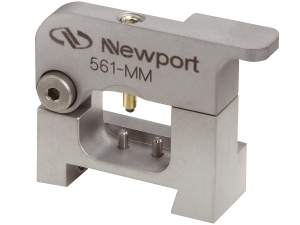

Module Mount
Our module mount 561-MM accepts modules for holding ball lenses, GRIN lenses, fiber collimators, and fiber ferrules. Optics and devices are gently held.
V-Groove Modules

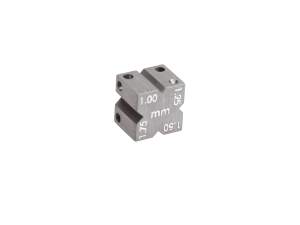

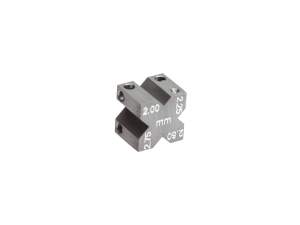

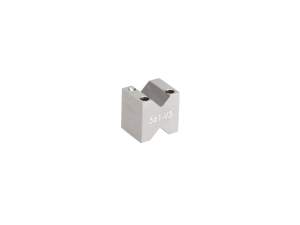

Our V-groove modules 561-Vx are used for holding 1 to 3.25 mm diameter cylindrical devices like GRIN lenses, fiber collimators, and fiber ferrules. They are gently held in 561-MM module mount.

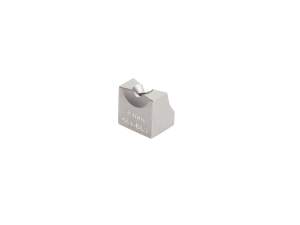

Ball Lens Modules

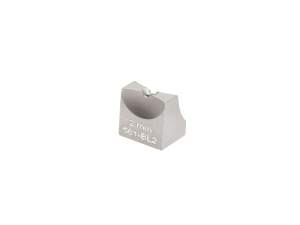

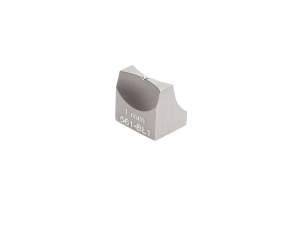

Ball lens modules 561-BLx are for holding 1, 2, or 3 mm diameter ball lenses. They are gently held in 561-MM module mount.

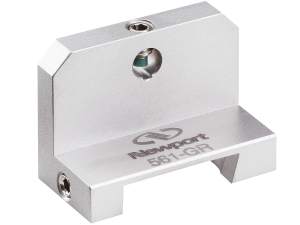

Gradient Index (GRIN) Lens Mount

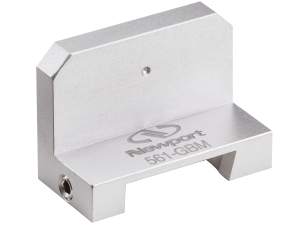

Gradient index lens mounts 561-GR and 561-GBM are used to mount GRIN lenses up to 4.5 mm diameter. Lenses held in a V-groove with a nylon-tipped setscrew.
Objective Lens Mount

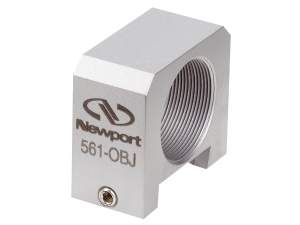

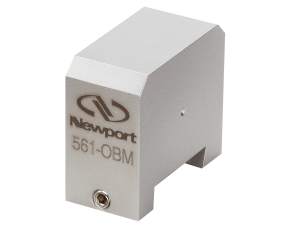

Our objective lens mounts 561-OBJ and 561-OBM are used to mount microscope and laser diode objective lenses. They have standard 0.800-36 RMS thread.

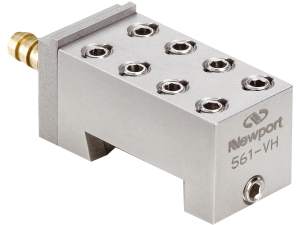

Vacuum Waveguide Mount
Our vacuum waveguide mount 561-VH has one to eight vacuum ports that can be used to mount small to large devices. It requires a user supplied vacuum pump.

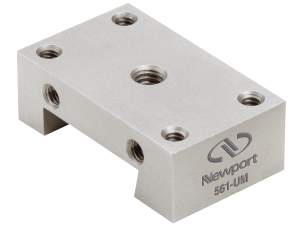

Universal Module
The universal module (M-)561-UM is used to mount custom component holders on the 561/562 rail.

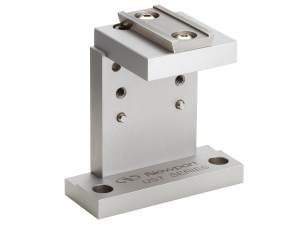

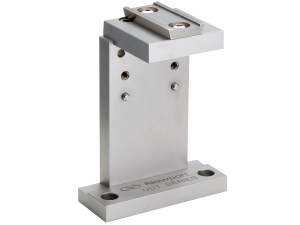

Universal Stand
Our 561-UST and 562-UST universal stands are a fixed platform to mount a component next to a positioning stage.
T-Stand

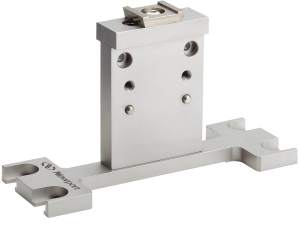

Our 561-TS and 562-TS T-Stands are a fixed platform to mount a component between two positioning stages.
Height Adapter
Our 561-ADPT Height Adapter raises 561 stages to the height of 562 stages. This adapter can be used with 561D-XYZ and 561D-YZ stages.
Dovetail Rail

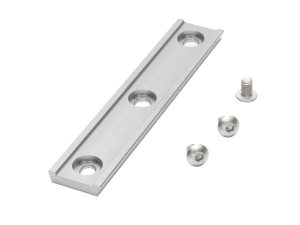

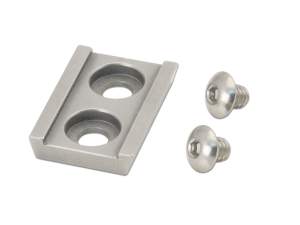

The 56x-RAIL-x Dovetail Rails are used with 561 and 562 Series ULTRAlign positioning systems.
