Flanged Lens Holder, 2.0 in. Diameter, 2 Inch Series Flange

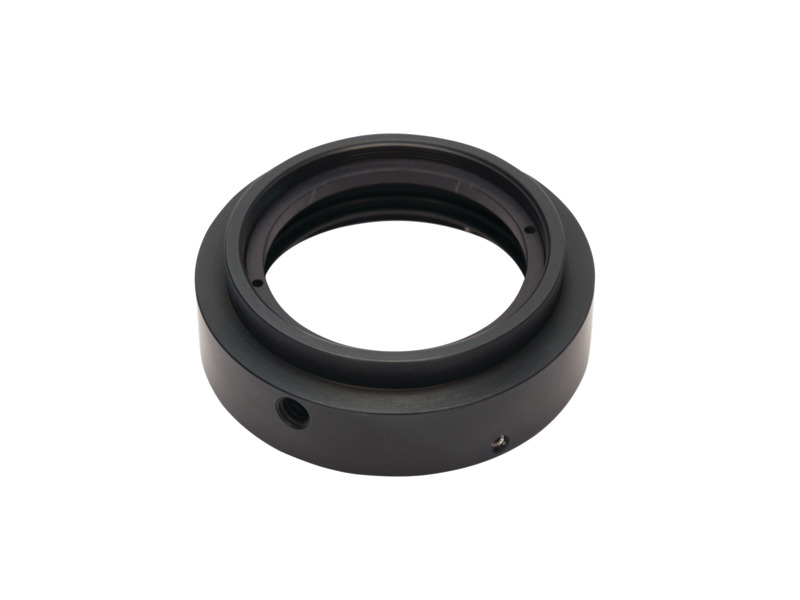

The 6222 Flange Mounted Cell is a simple lens holder with a 2 Inch Series female-flange on one end and a male-flange on the other. It holds 2 inch (50.8 mm) diameter optics. It is ideal for holding optical accessories at the input or output of our light sources, monochromators and other flanged instruments. This set screw model couples to male-flanged components via three set screws, and is light tight.

Specifications

Technical Specs

Type
Flanged Lens Holder
Flange Series Size
2 Inch

Diameter
50.8 mm
Thread Type
1/4-20

Type
Flanged Lens Holder
Flange Series Size
2 Inch

Diameter
50.8 mm
Thread Type
1/4-20

Resources & Downloads

3D Product Models

2D Product Drawings

LS-218a(646.2 kB, PDF)
