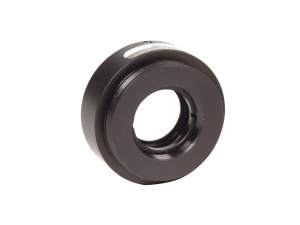

Flange Mounted Holders and Cells make an easy task of mounting optical accessories such as filters to the input or output flange of an Oriel® light source, Monochromator, Spectrograph, or other flanged component. The right flange mounted holder or cell and if necessary Flange Coupler or Adapter can meet any optical accessory mounting needs.
- Easily couple accessories to light sources, monochromators, and other flanged components
- Light tight flange mounted cells offered in set screw and quick connect types
- Flanged lens holders for 1.5, 2, and 3 inch flanges provide larger clear aperture
- 1/4-20 mounting hole thread See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 6195 Flanged Lens Holders and CellsFlanged Lens Holder, 1.5 in. Diameter, 1.5 Inch Series Flange | |||||
 | 6222 Flanged Lens Holders and CellsFlanged Lens Holder, 2.0 in. Diameter, 2 Inch Series Flange | |||||
 | 6237 Flanged Lens Holders and CellsFlanged Lens Holder, 3.0 in. Diameter, 3 Inch Series Flange | |||||
 | 7123 Flanged Lens Holders and CellsFlange Mounted Cell, 1.0 in. Diameter Optics, 1.5 Inch Flange | |||||
 | 71306 Flanged Lens Holders and CellsFlange Mounted Cell, Quick Connect, 1.0 in. Optics, 1.5 Inch Flange |
Features
Light Tight Flange Mounted Cells Offered In Set Screw and Quick Connect Types
Flange Mounted Cells provide a light tight optical accessory mounting solution. Each cell has a 1.5 inch male and female flange and a 1/4-20 mounting hole (for mounting with an Optical Rod) for simple installation and integration into an existing setup. These cells hold 1 inch (25.4 mm) diameter optics up to 0.38 (9.5 mm) thick, and provide a clear aperture of 0.8 inch (20 mm) diameter. Choose the 71306 Quick Connect type if a convenient solution is required for a setup that is frequently assembled and disassembled. Choose the 7123 Set Screw type if a more economical solution is preferred.
Flanged Lens Holders
Flanged Lens Holders provide a simple optical accessory mounting solution. Each lens holder couples to a flanged component via three set screws and has a 1/4-20 threaded hole in its housing for mounting with an Optical Rod. Three different sizes of Flanged Lens Holders are available:
- 6195 : has 1.5 inch male and female flanges, holds 1.5 inch (38.1 mm) diameter and 0.43 inch (11 mm) thick optics, 1.4 inch (35 mm) clear aperture
- 6222 : has 2 inch male and female flanges, holds 2 inch (50.8 mm) diameter optics, 1.8 inch (46 mm) clear aperture

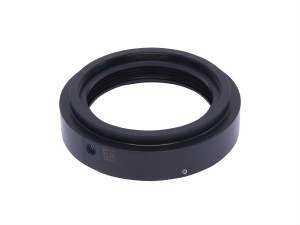

- 6237 : has 3 inch male and female flanges, holds 3 inch (76.2 mm) diameter optics, 2.7 inch (69 mm) clear aperture
Accessories
Flange Couplers and Adapters
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 66290 Flange Step Down Adapter, 3 Inch Male to 1.5 Inch Female | |||||
 | 66292 Flange Step Down Adapter, 2 Inch Male to 1.5 Inch Female | |||||
 | 77790 Flange Converter, Quick Connect, 1.5 Inch Series, Double Female | |||||
 | 77791 Coupling Ring, Quick Connect, 1.5 Inch Series, Double Female | |||||
 | 77792 Coupling Ring, Quick Connect, 1.5 Inch Series, Double Male | |||||
 | 77829 Coupling Ring, Light Source, 1.5 Inch, Double Female, Set Screw | |||||
 | LT10-UADPT Adapter, Oriel<sup>®</sup> 1.5-Inch Series Flange to Newport 1-Inch LT Series | |||||
 | LT20-UADPT Adapter, Oriel<sup>®</sup> 1.5-Inch Series Flange to Newport 2-Inch LT Series |
