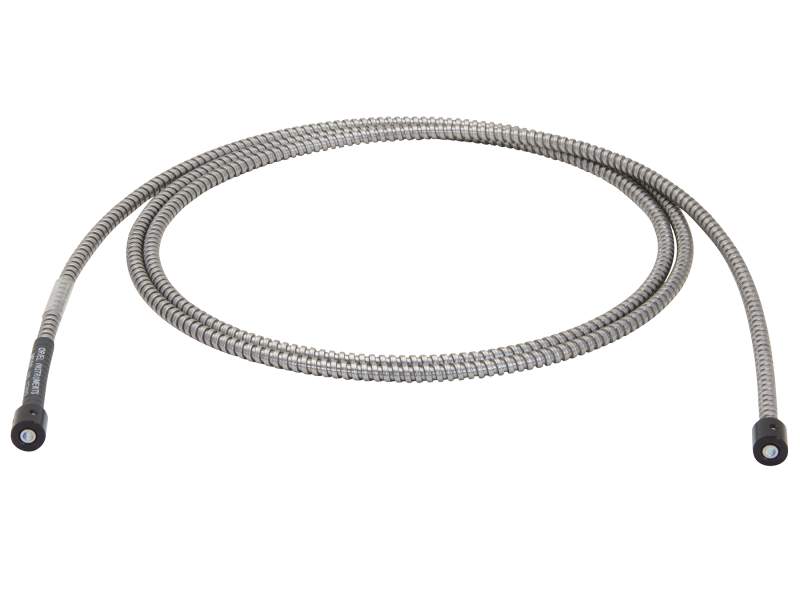

Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 72 in.

The 77527 Glass Fiber Optic Bundle uses a stainless steel protective sheathing around the fibers. This 72 inch long, 0.125 inch diameter glass fiber bundle uses a silica/silica polyimide buffer. It has 11 mm ferrule terminations for mounting in our standard fiber adapters.

Specifications

Technical Specs

Type
Single Branch Fiber Bundle
Core Diameter
3.2 mm
Numerical Aperture
0.56
Transmittance Range
400 - 1500 nm
Fiber Length
72 in.

Acceptance Cone, 2a
68°
F/#
0.9
Fiber Material
Glass
Transmittance
0.55

Type
Single Branch Fiber Bundle
Core Diameter
3.2 mm
Numerical Aperture
0.56
Transmittance Range
400 - 1500 nm
Fiber Length
72 in.

Acceptance Cone, 2a
68°
F/#
0.9
Fiber Material
Glass
Transmittance
0.55

Resources & Downloads

3D Product Models

2D Product Drawings

LS-253a(619.2 kB, PDF)
