Single Branch Fiber Bundles

Single branch fiber bundles are popular for their broadband ultraviolet (UV) to near-infrared (NIR) transmittance and high throughput. With the right fiber bundle focusing lens assembly, convenient coupling to an Oriel® Research lamp housing allows the output light of an arc lamp or QTH lamp to be focused onto a smaller irradiation area.

Broad transmittance range over UV to NIR wavelengths
High throughput
Three different glass type fiber bundles offered

See All Features

Show Filters:

Showing 10 of 10 total products

Compatibility:

Description	Compatibility	Core Diameter	Numerical Aperture	Transmittance Range	Fiber Length	Fiber Material	Avail.	Price

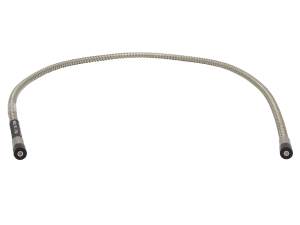

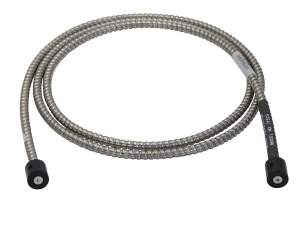

77522 Single Branch Fiber Optic Bundles Glass Fiber Optic Bundle, 11 mm Ferrules, 0.063 in. Diameter, 48 in.	UNIVERSAL	1.6 mm	0.56	400 - 1500 nm	48 in.	Glass	Discontinued
77524 Single Branch Fiber Optic Bundles Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 24 in. (RoHS Pending)	UNIVERSAL	3.2 mm	0.56	400 - 1500 nm	24 in.	Glass		$200
77525 Single Branch Fiber Optic Bundles Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 36 in. (RoHS Pending)	UNIVERSAL	3.2 mm	0.56	400 - 1500 nm	36 in.	Glass		$230
77526 Single Branch Fiber Optic Bundles Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 48 in.	UNIVERSAL	3.2 mm	0.56	400 - 1500 nm	48 in.	Glass		$300

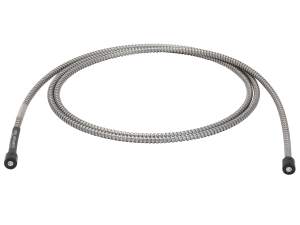

77527 Single Branch Fiber Optic Bundles Fiber Optic Bundle, Glass, 11 mm Ferrules, 0.125 in. Diameter, 72 in.	UNIVERSAL	3.2 mm	0.56	400 - 1500 nm	72 in.	Glass		$455
77563 Single Branch Fiber Optic Bundles Fiber Optic Bundle, Fused Silica, 11 mm Ferrules, 0.125 in., 24 in.	UNIVERSAL	3.2 mm	0.27	280 - 2200 nm	24 in.	Fused Silica	Discontinued
77564 Single Branch Fiber Optic Bundles Fiber Optic Bundle, Fused Silica, 11 mm Ferrules, 0.125 in., 36 in.	UNIVERSAL	3.2 mm	0.27	280 - 2200 nm	36 in.	Fused Silica		$785
77575 Single Branch Fiber Optic Bundles Fiber Optic Bundle, High Grade FS, 11 mm Ferrule, 0.063 in., 24 in.	UNIVERSAL	1.6 mm	0.22	260 - 2200 nm	24 in.	High Grade Fused Silica		$705
77576 Single Branch Fiber Optic Bundles Fiber Optic Bundle, High Grade FS, 11 mm Ferrule, 0.063 in., 36 in.	UNIVERSAL	1.6 mm	0.22	260 - 2200 nm	36 in.	High Grade Fused Silica		$835
77577 Single Branch Fiber Optic Bundles Fiber Optic Bundle, High Grade FS, 11 mm Ferrule, 0.125 in., 24 in.	UNIVERSAL	3.2 mm	0.22	260 - 2200 nm	24 in.	High Grade Fused Silica		$1,135

Features

Broad Transmittance Range Over UV to NIR Wavelengths

Single branch fiber bundles have a broader spectral range than Liquid Light Guides, transmitting from 260 to 2200 nm. Fiber bundles with glass cores constructed from glass, standard grade fused silica, and high grade fused silica are offered. A light guide should be chosen based on the wavelength range of transmittance and transmittance efficiency required.

High throughput

Compared to Large Core Optical Fibers, single branch fiber bundles have significantly higher throughput when larger filament or arc light sources are used.

Accessories

Focusing Lens Assemblies

Description	Compatibility	Price
77776 Focusing Assembly, Fiber Bundle, FS Aspheric, F/2.2, 800 µm Spot	UNIVERSAL	$905
77799 Focusing Assembly, Fiber Bundle, Glass Aspheric, F/0.85, 4 mm Spot	UNIVERSAL	$465
77800 Focusing Assembly, Fiber Bundle, Plano Convex, F/2, 4 mm Spot	UNIVERSAL	$585

Ferrules and Ferrule Converters

Description	Compatibility	Price
77640 Fiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.38 inch Length	UNIVERSAL	$25
77641 Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.38 inch Length	UNIVERSAL	$20
77642 Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.48 inch Length	UNIVERSAL	$30
77663 Fiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.48 inch Length	UNIVERSAL	$25
77665 Fiber Bundle Ferrule, 11mm, 0.20 inch Inner Dia., 0.38 inch Length	UNIVERSAL	$30
77666 Fiber Bundle Ferrule, 11mm, 0.25 inch Inner Dia., 0.48 inch Length	UNIVERSAL	$60
77667 Fiber Bundle Ferrule, 11mm, 0.31 inch Inner Dia., 0.48 inch Length	UNIVERSAL	$35
77670 Ferrule Converter, SMA Termination to 11mm Standard Ferrule	UNIVERSAL	$55
77675 Ferrule Converter, ST Termination to 11mm Standard Ferrule	UNIVERSAL	$160
