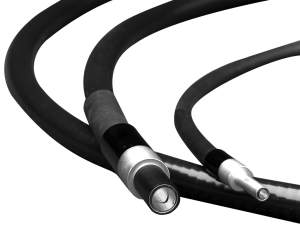

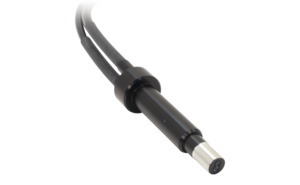

Liquid Light Guides

If greater light transmittance and throughput is valued instead of a wider transmittance range, a liquid light guide is an excellent alternative to traditional fiber bundles. These light guides are cheaper and provide greater durability than fiber bundles made of standard fused silica material. Oriel®offers liquid light for various wavelength regions.

High ultraviolet to near-infrared throughput
Large acceptance angle
Deep UV light guides available
Bifurcated and trifurcated versions

See All Features

Description	Compatibility	Avail.	Price
76841 Liquid Light GuidesLiquid Light Guide, 79 in., 220-600 nm, 0.12 in. Core, 0.43 NA	UNIVERSAL		$1,250
76842 Liquid Light GuidesLiquid Light Guide, 39.4 in., 220-600 nm, 0.2 in. Core, 0.43 NA	UNIVERSAL		$1,350
76843 Liquid Light GuidesLiquid Light Guide, 79 in., 220-600 nm, 0.2 in. Core, 0.43 NA	UNIVERSAL		$1,870
76845 Liquid Light GuidesBifurcated Liquid Light Guide, 220-600 nm, 0.12 in. Core, 79 in. Legs	UNIVERSAL	Discontinued
77554 Liquid Light GuidesLiquid Light Guide, 39.4 in., 300-650 nm, 0.12 in. Core, 0.59 NA	UNIVERSAL		$300
77555 Liquid Light GuidesLiquid Light Guide, 79 in., 300-650 nm, 0.12 in. Core, 0.59 NA	UNIVERSAL		$430
77556 Liquid Light GuidesLiquid Light Guide, 39.4 in., 300-650 nm, 0.2 in. Core, 0.59 NA	UNIVERSAL		$505
77557 Liquid Light GuidesLiquid Light Guide, 79 in., 300-650 nm, 0.2 in. Core, 0.59 NA	UNIVERSAL		$645
77628 Liquid Light GuidesLiquid Light Guide, 39.4 in., 300-650 nm, 0.3 in. Core, 0.59 NA	UNIVERSAL		$705
77629 Liquid Light GuidesLiquid Light Guide, 79 in., 300-650 nm, 0.3 in. Core, 0.59 NA	UNIVERSAL		$1,045

Show All

Specifications

Transmittance Range	220-600 nm	300-650 nm	340-800 nm	420-2000 nm
Numerical Aperture	0.43	0.59	0.59	0.52
F/#	1.2	0.85	0.85	0.96
Acceptance Cone, 2a	50°	72°	72°	62°

Features

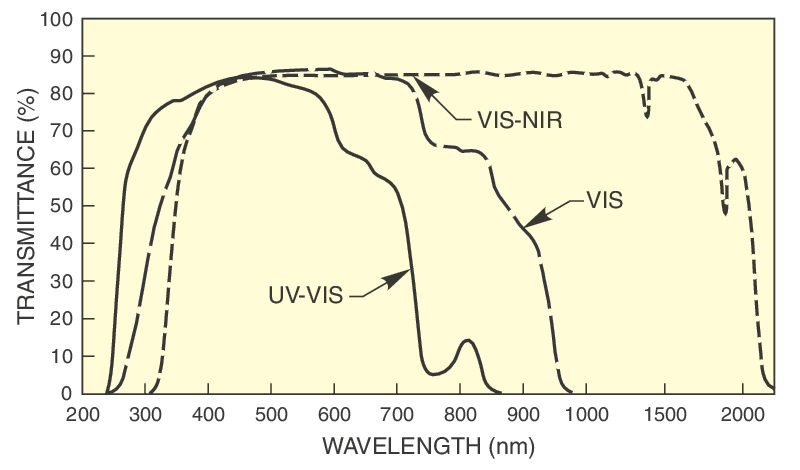

High ultraviolet to near-infrared throughput

Liquid light guides provide much greater transmittance than Fused Silica Fiber Bundles, do not have the risk of fiber breakage, and are less expensive. Data shown for 2 meter long light guides.

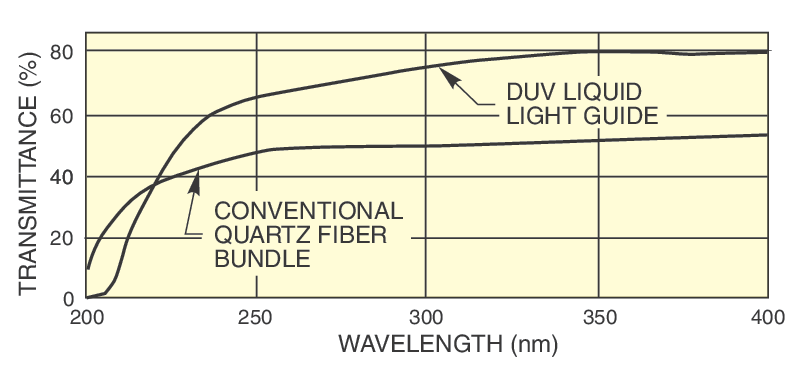

Deep UV Light Guides Available

Deep UV (DUV) liquid light guides capable of transmitting wavelengths down to 220 nm are available. These are helpful for transmitting the high UV intensity of an Arc Lamp or Deuterium Lamp. For small point sources 1 mm or less in size, a Solarization Resistant Fiber is recommended.

Bifurcated and Trifurcated Versions

For dual source applications, bifurcated liquid light guides are available. The two cores are stacked atop each other in the common end, allowing for complete focus of each individual light source onto its own irradiance area. Trifurcated light guides are also available – contact us for more information.

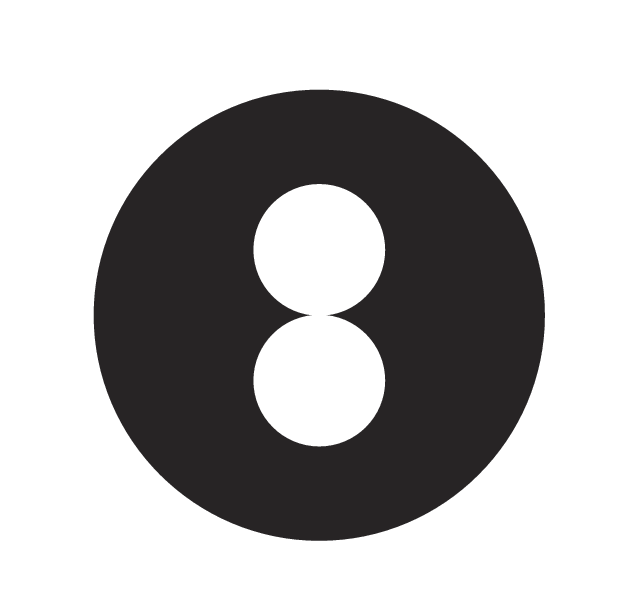

Front view of common end of a bifurcated liquid light guide – the end does not merge into a single circular core.

Accessories

Fiber Bundle Mounts

Description	Compatibility	Price

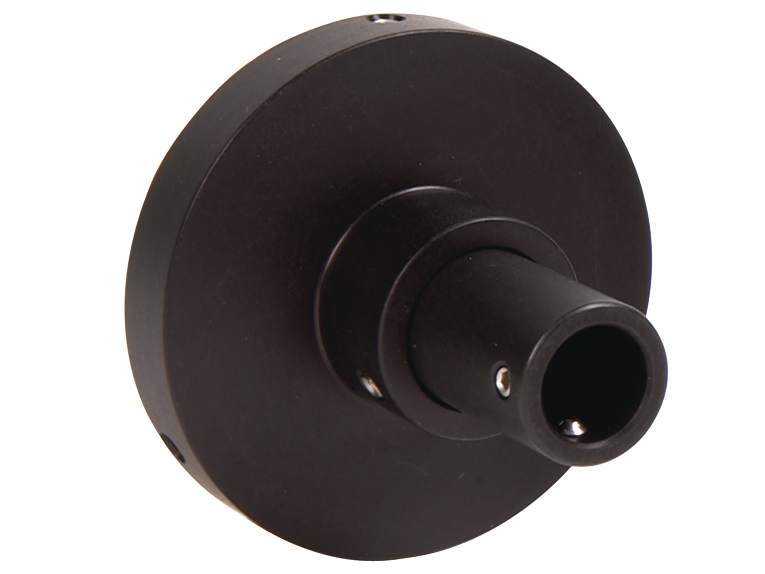

77357 Fiber Bundle Mount, Circular Bundle to 1.5 Inch Female Flange	UNIVERSAL	$105

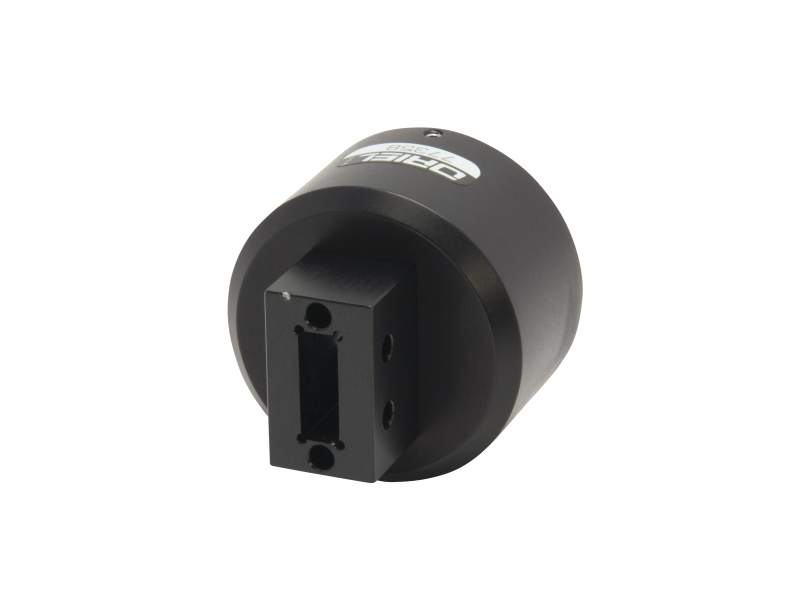

77358 Fiber Bundle Mount, Rectangular Bundle to 1.5 Inch Female Flange	UNIVERSAL	$560

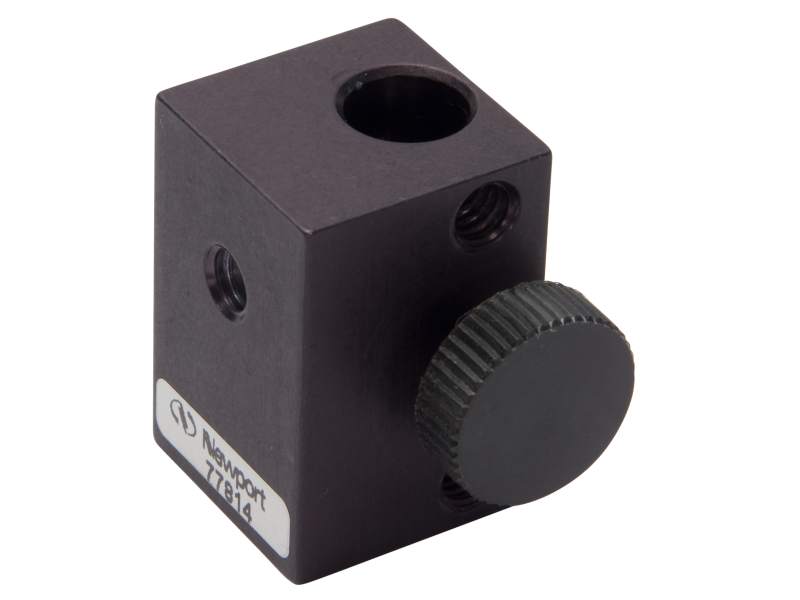

77814 Fiber Bundle Holder, 11 mm, Optical Post Mounted	UNIVERSAL	$170

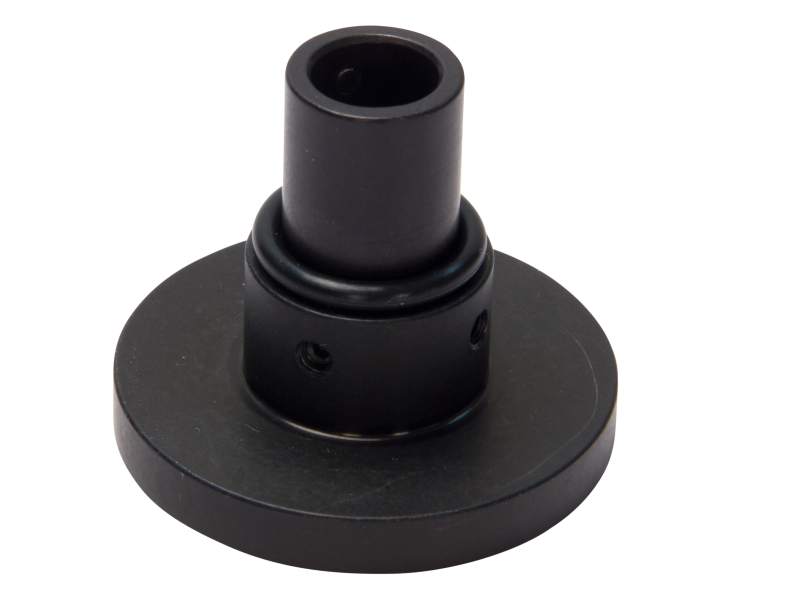

77817 Fiber Bundle Mount, Circular Bundle to 1.5 Inch Male Flange	UNIVERSAL	$145

Fiber Positioner Mount

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

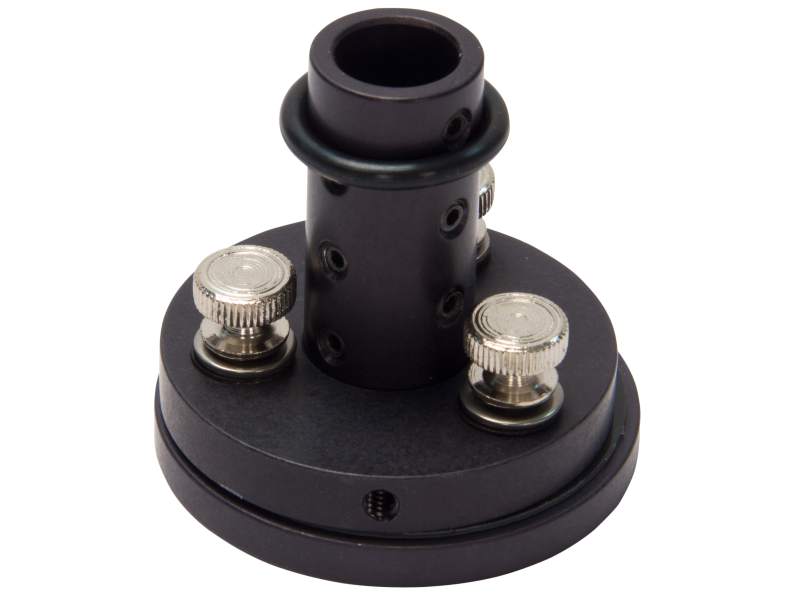

		77802 Fiber Bundle Holder, Circular Bundle to 1.5 Inch Male Flange, XYZ Adjust	UNIVERSAL			$355

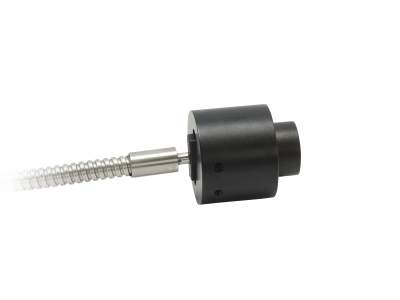

Monochromator Fiber Adapters

Description	Compatibility	Price
77529 F/# Matcher, XYZ Focus Adjustment, 1.5 Inch Female Flange	UNIVERSAL	$2,560
77860 Optical Fiber Adapter, Monochromator, 11 mm Ferrules, Set Screws	UNIVERSAL	$170
77863 Optical Fiber Adapter, Monochromator, 11 mm Ferrules, Quick Disconnect	UNIVERSAL	$520

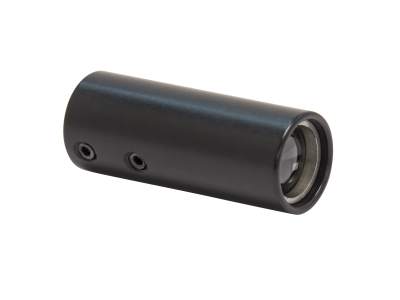

Beam Probes

Description	Compatibility	Price
76595 Collimating Beam Probe, Fiber Bundle, 25-150 mm, 1.5 Inch Flange	UNIVERSAL	$1,045
76596 Collimating Beam Probe, Fiber Bundle, 70-350 mm, 1.5 Inch Flange	UNIVERSAL	$625
76597 Collimating Beam Probe, Fiber Bundle 150-650 mm, 2 Inch Flange	UNIVERSAL	$885
76600 Collimating Beam Probe, Liquid Light Guide 25-40 mm, 1.5 Inch Flange	UNIVERSAL	$415
76605 Collimating Beam Probe, Liquid Light Guide, 40-50 mm, 1.5 Inch Flange	UNIVERSAL	$665

Ferrules and Ferrule Converters

Description	Compatibility	Price
77640 Fiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.38 inch Length	UNIVERSAL	$25

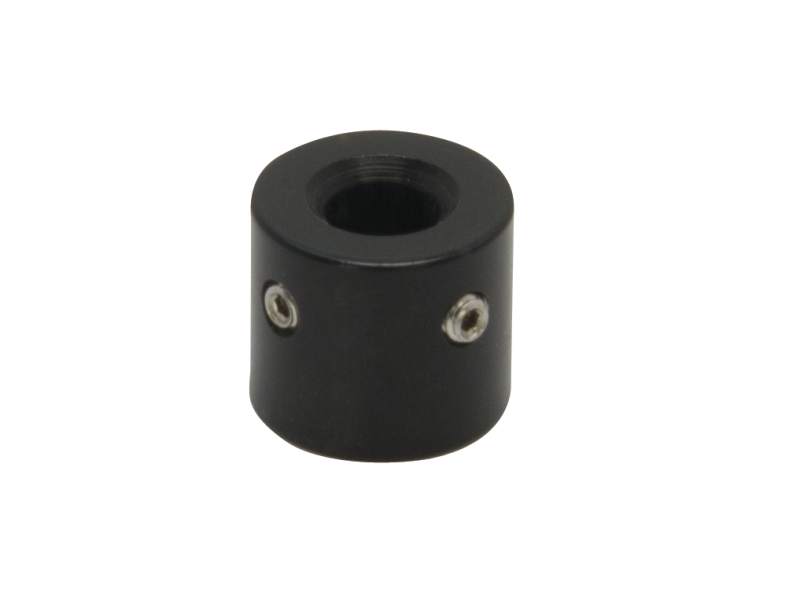

77641 Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.38 inch Length	UNIVERSAL	$20

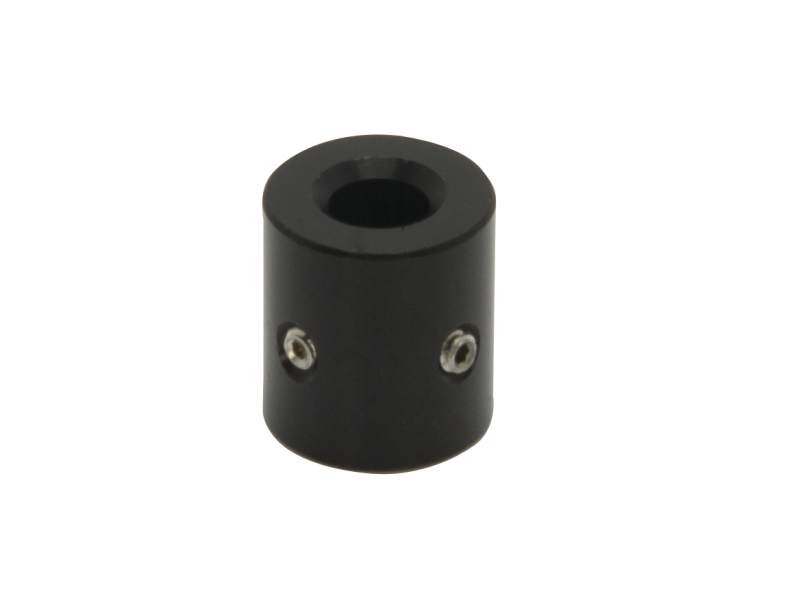

77642 Fiber Bundle Ferrule, 11mm, 0.18 inch Inner Dia., 0.48 inch Length	UNIVERSAL	$30
77663 Fiber Bundle Ferrule, 11mm, 0.16 inch Inner Dia., 0.48 inch Length	UNIVERSAL	$25

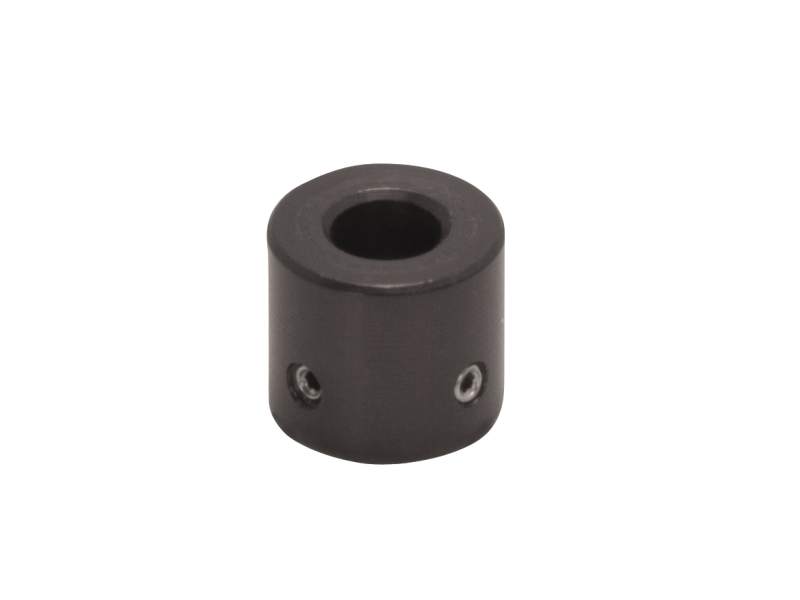

77665 Fiber Bundle Ferrule, 11mm, 0.20 inch Inner Dia., 0.38 inch Length	UNIVERSAL	$30
77666 Fiber Bundle Ferrule, 11mm, 0.25 inch Inner Dia., 0.48 inch Length	UNIVERSAL	$60
77667 Fiber Bundle Ferrule, 11mm, 0.31 inch Inner Dia., 0.48 inch Length	UNIVERSAL	$35

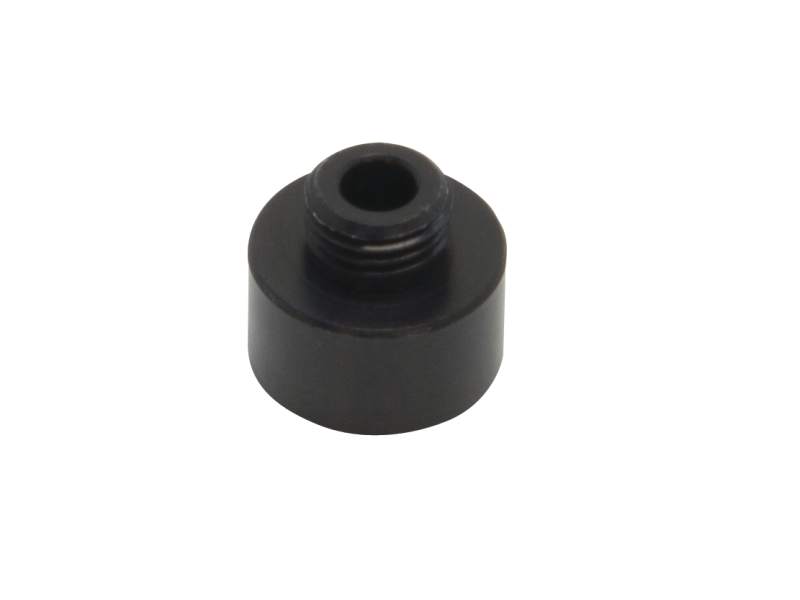

77670 Ferrule Converter, SMA Termination to 11mm Standard Ferrule	UNIVERSAL	$55

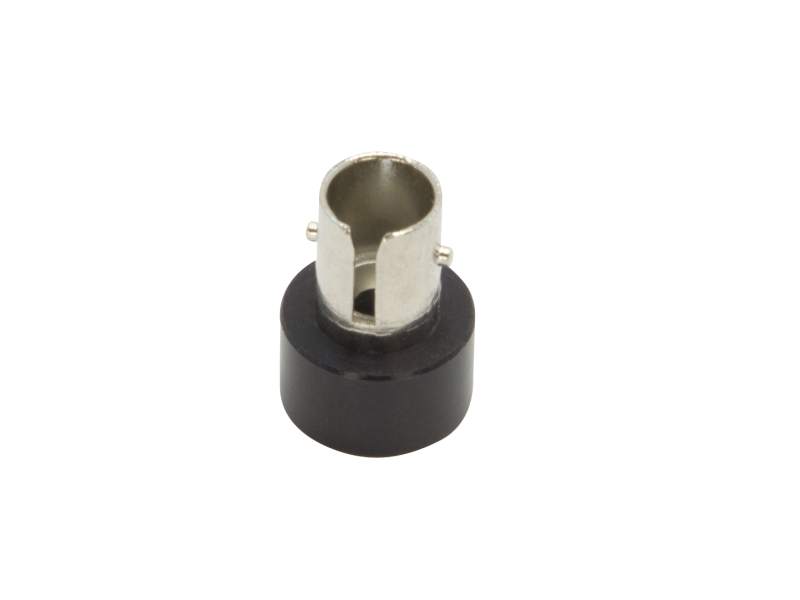

77675 Ferrule Converter, ST Termination to 11mm Standard Ferrule	UNIVERSAL	$160
