Fiber Bundle Holder, 11 mm, Optical Post Mounted

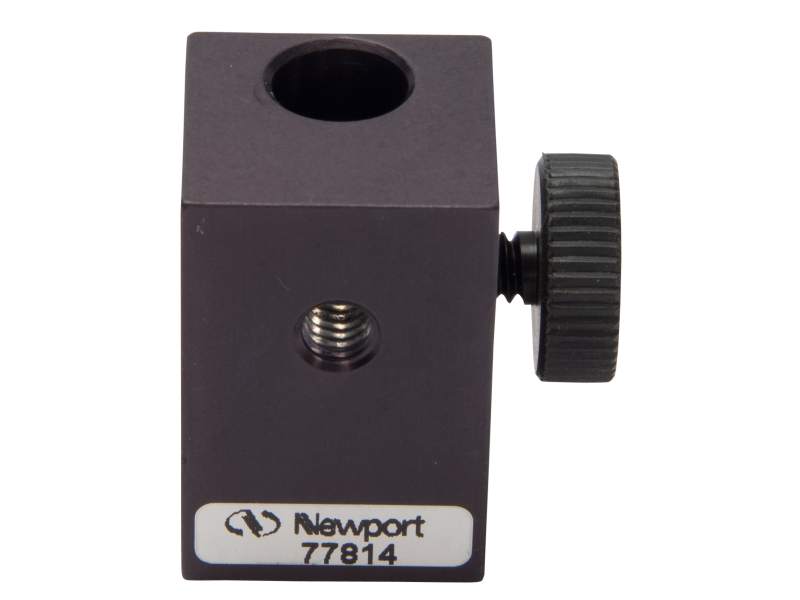

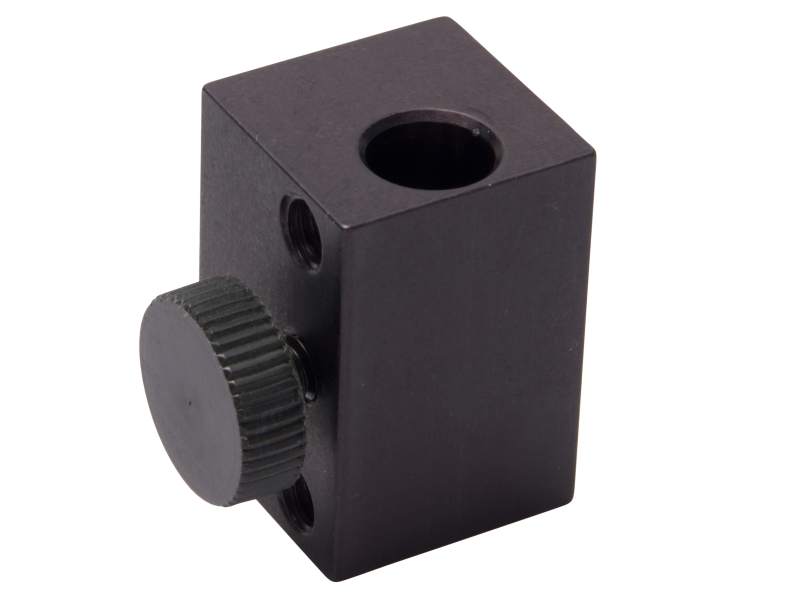

The 77814 Rod Mounted Fiber Bundle Holder is an inexpensive and simple device that holds any 11 mm Fiber Bundle atop an optical rod. You can vary the optical axis height, and you can adjust the position of the face of the bundle over 17 mm. When the fiber is in the proper position, it is secured with a thumbscrew. The 77814 does not include an optical rod.

Specifications

Technical Specs

Type
Fiber Bundle Rod Mount

Type
Fiber Bundle Rod Mount

Resources & Downloads

Drawings And Cad

BPT-pg18-37a(469.5 kB, PDF)

Related Products

Accessories

Description	Compatibility	Price
AW-1Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	$20
BB-MOptical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	$36
BDK-1Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	$39
SK-25ABlack Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	$74
SK-TAThread Adaptor Set, English	UNIVERSAL	$330
