Fiber Holders and Mounts

Oriel^® offers a variety of fiber holders and mounts for optimum mounting of a Light Guide or Fiber to other instruments with the Oriel 1.5 inch flange such as a Monochromator or Spectrograph, Integrating Sphere, or Detector. If coupling to an Oriel component with a 2 inch or 3 inch series flange is required, a line of Flange Couplers and Adapters is available for mechanical compatibility.

Compatible with Oriel standard 1.5 inch flange
Flanged Mount for SMA terminated fibers
Flanged mounts for circular and rectangular fiber bundles
Flanged XYZ fiber positioner mount
Fiber holder for optical post mounting
Rod mount for fiber bundles

See All Features

Show Filters:

Showing 7 of 7 total products

Compatibility:

Description	Compatibility	Price
70456 Fiber Holders and Mounts Optical Fiber Holder, Single SMA, 1.5 Inch Series Female Flange	UNIVERSAL	$685
77357 Fiber Holders and Mounts Fiber Bundle Mount, Circular Bundle to 1.5 Inch Female Flange	UNIVERSAL	$105
77358 Fiber Holders and Mounts Fiber Bundle Mount, Rectangular Bundle to 1.5 Inch Female Flange	UNIVERSAL	$560
77802 Fiber Holders and Mounts Fiber Bundle Holder, Circular Bundle to 1.5 Inch Male Flange, XYZ Adjust	UNIVERSAL	$355
77814 Fiber Holders and Mounts Fiber Bundle Holder, 11 mm, Optical Post Mounted	UNIVERSAL	$170
77817 Fiber Holders and Mounts Fiber Bundle Mount, Circular Bundle to 1.5 Inch Male Flange	UNIVERSAL	$145
77848 Fiber Holders and Mounts Optical Fiber Holder, Single SMA, Optical Post Mounted	UNIVERSAL	$105

Features

Flanged Mounts for Circular and Rectangular Fiber Bundles

For coupling a Rectangular or circular end fiber optic bundle to a 1.5 inch flanged component, these flanged fiber bundle mounts are useful. Adjustments of 0.5 inch (12.7 mm) along the optical axis is possible.

77357 : Has a 1.5 inch female flange and connector for the standard 11 mm circular fiber bundle terminations.

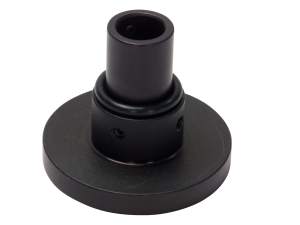

77817 : Has a 1.5 inch male flange and connector for the standard 11 mm circular fiber bundle terminations.
77358 : Has a 1.5 inch female flange and holds the rectangular end of a rectangular to circular fiber optic bundle. This is especially useful for coupling light onto the input slit of a Monochromator.

The 77358 can be coupled by itself onto the flange of a monochromator, or the included spacer tube can be used to attach the 77358 to the 77330 Focusing Lens Assembly for optimum light focusing onto the slit of a monochromator.

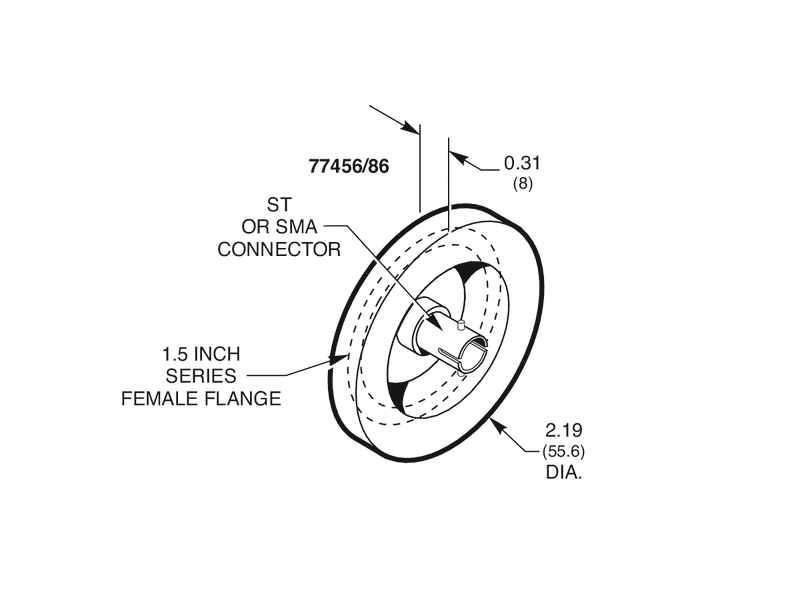

Flanged Mount for SMA Terminated Fibers

The 70456 has a 1.5 inch series female flange and connector for SMA terminated fibers.

Flanged XYZ Fiber Positioner Mount

The 77802 XYZ Fiber Positioner Mount has a 1.5 inch male flange and holds fiber bundles terminated with 11 mm circular ferrules. Adjustment in the X and Y directions of 0.063 inch (1.6 mm), perpendicular to the optical access is possible. Along the optical axis, 0.5 inch (12.7 mm) adjustment is possible. Adjustment in three axes allows the bundle to be positioned in the most favorable spot for maximizing collected output light from a focused source.

Fiber Holder for Optical Post Mounting

The 77848 Optical Post Mount Fiber Holder is for fibers terminated with an SMA connection. Optical Post can be used to mount the 77848 via its 1/4-20 UNC 2B mounting hole close to a photodetector or sample.

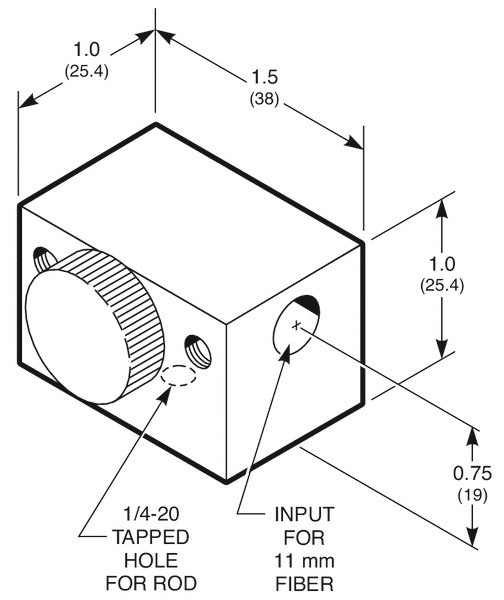

Rod Mount for Fiber Bundles

The 77814 Rod Mount for Fiber Bundles allows the optical axis height to be adjusted by mounting it to an Optical Post through its 1/4-20 tapped hole. The position of the fiber bundle within the mount is adjustable within a 17 mm distance.

Accessories

Focusing Lens Assemblies

Description	Compatibility	Price
77776 Focusing Assembly, Fiber Bundle, FS Aspheric, F/2.2, 800 µm Spot	UNIVERSAL	$905
77799 Focusing Assembly, Fiber Bundle, Glass Aspheric, F/0.85, 4 mm Spot	UNIVERSAL	$465
77800 Focusing Assembly, Fiber Bundle, Plano Convex, F/2, 4 mm Spot	UNIVERSAL	$585

Ferrule Converters

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		77670 Ferrule Converter, SMA Termination to 11mm Standard Ferrule	UNIVERSAL			$55
		77675 Ferrule Converter, ST Termination to 11mm Standard Ferrule	UNIVERSAL			$160

Flange Adapters

Description	Compatibility	Price
66290 Flange Step Down Adapter, 3 Inch Male to 1.5 Inch Female	UNIVERSAL	$500
66292 Flange Step Down Adapter, 2 Inch Male to 1.5 Inch Female	UNIVERSAL	$160
77790 Flange Converter, Quick Connect, 1.5 Inch Series, Double Female	UNIVERSAL	$560
77791 Coupling Ring, Quick Connect, 1.5 Inch Series, Double Female	UNIVERSAL	$300
77792 Coupling Ring, Quick Connect, 1.5 Inch Series, Double Male	UNIVERSAL	$95
LT10-UADPT Adapter, Oriel<sup>®</sup> 1.5-Inch Series Flange to Newport 1-Inch LT Series	UNIVERSAL	$105
LT20-UADPT Adapter, Oriel<sup>®</sup> 1.5-Inch Series Flange to Newport 2-Inch LT Series	UNIVERSAL	$365
