Oriel® Beam Probes often need to be mounted in a precise location or directly to an instrument such as a monochromator. For these purposes, Oriel offers two different categories of beam probes and a complete line of accessories to fully integrate the probe into any setup required.
- Inexpensive, simple to use method for mounting beam probes
- Post-mounted holder
- Flange mount for coupling to Oriel products
- No-flange mounts for beam probes for free space coupling See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 76615 Beam Probes MountsBeam Probe Mount, 1.5 Inch Series, No Flange | |||||
 | 76616 Beam Probes MountsBeam Probe Mount, 2 Inch Series, No Flange | |||||
 | 77612 Beam Probes MountsBeam Probe Mount, Post Mountable | |||||
 | 77803 Beam Probes MountsBeam Probe Mount, 1.5 inch Series, Male Flange | |||||
 | 77873 Beam Probes MountsBeam Probe Mount, 1.5 inch Series, Female Flange |
Features
Post Mounted Holder

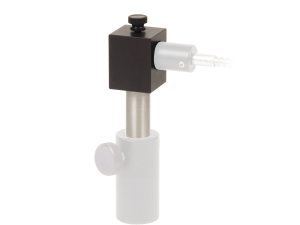

The 77612 post mounted holder provides a simple solution for holding a beam probe at a specific place and height. The beam probe is secured within the holder by a set screw and comes pre-installed with an SP-3 3-in. post. It can be mounted to an optical breadboard using any 0.5-in. post holder (sold separately).
Flanged Mounts
Flanged mounts for beam probes compatible with standard Oriel 1.5-in. flange are available. These flanges hold the 11-mm ferrule of Oriel light guides and have either a 1.5-in. male (model 77803) or female (model 77873) flange. They are especially useful for mounting a focusing beam probe at the entrance of a monochromator. If additional coupling accessories are necessary – for example, setups in which two same-sex flanges or flanges of different sizes need to be coupled – a complete set of Flange Couplers and Adapters are available for all possible mounting situations.
No-Flange Mounts

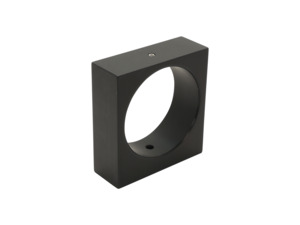

Newport also offers easy to use post-mountable beam probe mounts with no flange. A beam probe can simply be slid into the holder, adjusted for optimal position and secured with a set screw. The mounts have a 1/4-20 thread on the bottom to connect an optical post and holder of your choice, providing the flexibility to meet the exact height of the measurement setup. Model 76615 beam probe mount holds 1.5-in. series (diameter) beam probes for free space coupling, and model 76616 holds 2.0-in. series (diameter) beam probes.
