Air Mass Filter, AM 1.5 Global, LCS-100 Simulators Only
Air Mass Filter, AM 1.5 Global, LCS-100 Simulators Only
Model: 81088A-LCS
Product Series Overview
Air Mass FiltersWhen requesting a quote for this proprietary filter, please have your Newport Oriel solar simulator model number and serial number ready for ordering. Contact your Newport sales representative for more information.

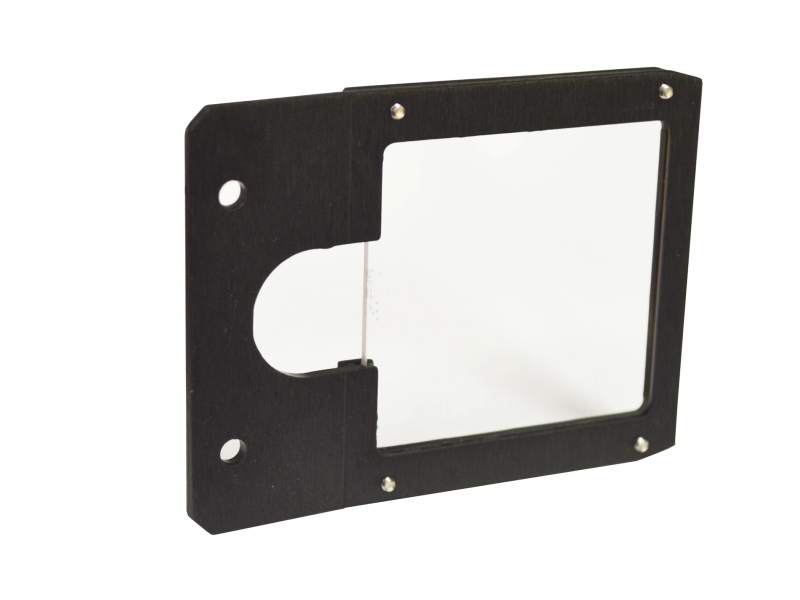

The 81088A-LCS Air Mass Filter matches the total (direct and diffuse) spectrum when the sun is at a zenith angle of 37.0° for the LCS-100 Class ABB simulators. This filter is only compatible with the 94011A(-ES) simulators. This air mass filter includes the LCS-100 solar simulator's integral filter holder, with a convenient pull handle allowing for quick and easy insertion as well as removal of the filter. The 81088A-LCS is an AM 1.5G type filter to the ASTM E 892 standard.
