Our lamp-based Solar Simulators produce an unfiltered Xenon spectrum. To approximate solar conditions for a variety of solar simulation applications we offer a complete line of Air Mass (AM) Filters. These filters modify the spectral output of the arc lamp to match specific natural solar conditions. An Air Mass filter is chosen by the type of solar spectrum that needs to be simulated. Our filters can be easily replaced in the solar simulator to enable quick, reliable customization of the output spectrum.

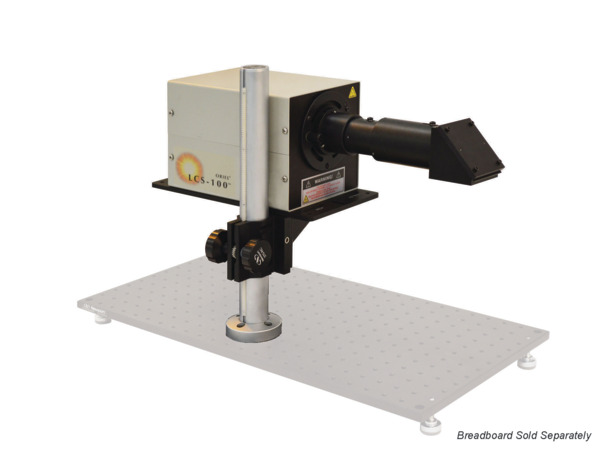

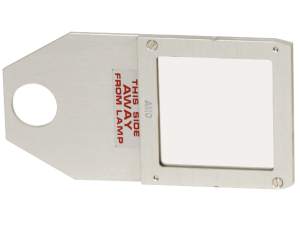

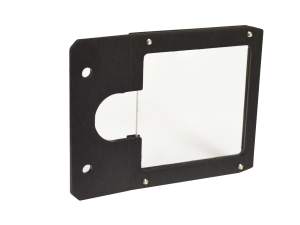

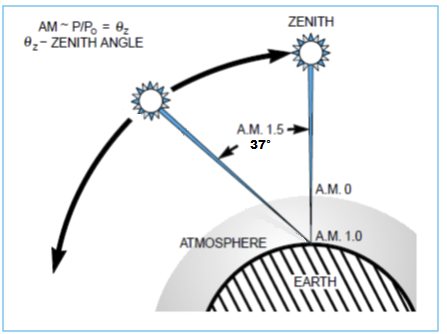

Three air mass filters are specifically designed for our LCS-100 series solar simulators. There is an AM 0 filter to simulate solar radiation outside the earth’s atmosphere, an AM 1.5 Direct to simulate solar radiation that only is transmitted through the earth’s atmosphere at a specific angle, and an AM 1.5 Global to simulate all radiation, direct and scattered, at the same angle. The latter is used to certify the solar simulator to Class ABB standards. Please note that these proprietary filters are only compatible with the LCS-100 models.  When requesting a quote for 81011-LCS, 81088A-LCS, or 81389-LCS, please have your solar simulator model number and serial number ready for ordering.

We are proud to house and manage one of the few commercial photovoltaic and calibration test laboratories in the world. The Photovoltaic Calibration and Test Laboratory is accredited by A2LA to the ISO/IEC 17025 Standard, using state of the art equipment for measurements in accordance with ASTM E948 and E1021. The lab welcomes requests for prototype PV device performance measurements or PV reference cell calibrations. Flexible scheduling and rapid turnaround time ensure minimal downtime to time sensitive devices.
