Port Aperture Reducer, 1.0 in. Port, 0.5 in. Aperture, Diffused Gold, 819C and 819D Spheres

Port Aperture Reducers for Integrating Spheres

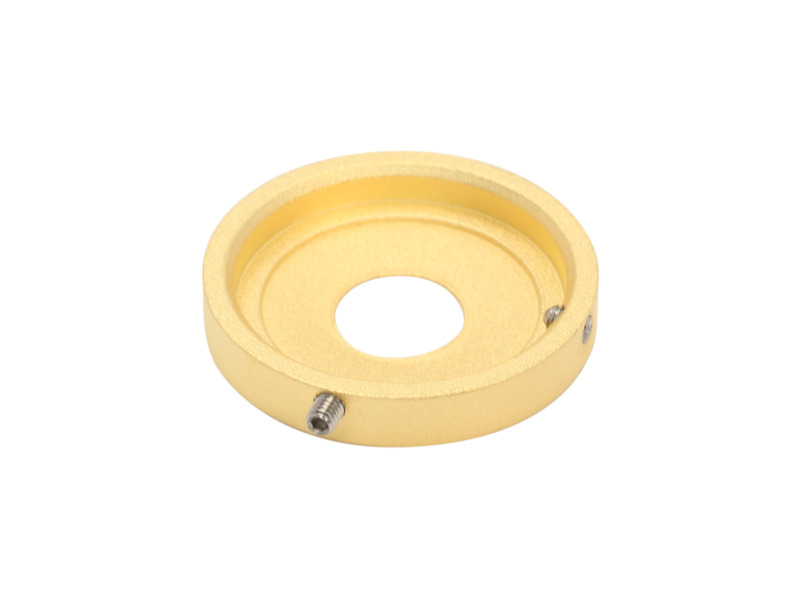

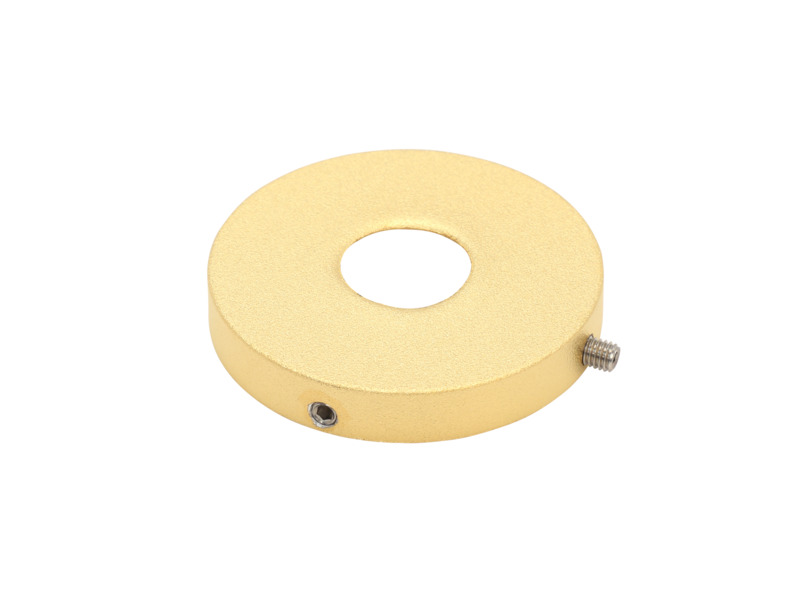

The 819M-G-0.50-1.0 Port Reducer is used to reduce the port size of a 819C or 819D Series gold integrating sphere from 1 inch to 1/2 inch. Diffuse gold coating inside. Comes with a 1.5 mm Allen wrench and M3 set screws.

Specifications

Technical Specs

Type
Port Aperture Reducer
Detector Type
819C & 819D Series
Sphere Material
Diffused Gold

Clear Aperture
0.5 in.
Material
Black anodized aluminum

Type
Port Aperture Reducer
Detector Type
819C & 819D Series
Sphere Material
Diffused Gold

Clear Aperture
0.5 in.
Material
Black anodized aluminum

Resources & Downloads

3D Product Models

2D Product Drawings

DS-111501 Intergrating Sphere Acces-2.pdf(1.2 MB, PDF)
