Integrating Sphere Port Aperture Reducers
Integrating Sphere Port Aperture Reducers
Our flat black coated port aperture reducers are used to reduce an integrating sphere input port's clear aperture. The absorptive flat black coating allows the reducer to be used without altering the calibration of the integrating sphere.
- Reduce the aperture of a sphere input port
- Flat black coating for consistent power measurement

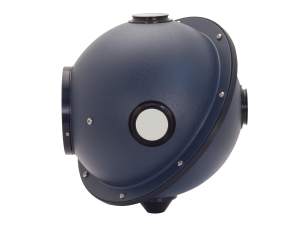

- Compatible with 819C and 819D modular integrating spheres See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 7Z08363N Port Aperture Reducers for Integrating Spheres 819M-B-0.50-1.0V2 Port Aperture Reducer, 1.0 in. Port, 0.5 in. Aperture, Flat Black, 819C and 819D Spheres | |||||
 | 819M-B-0.06-0.5 Port Aperture Reducers for Integrating Spheres Port Aperture Reducer, 0.5 in. Port, 0.0625 in. Aperture, Flat Black, 819C and 819D Spheres | |||||
 | 819M-B-0.12-0.5 Port Aperture Reducers for Integrating Spheres Port Aperture Reducer, 0.5 in. Port, 0.125 in. Aperture, Flat Black, 819C and 819D Spheres | |||||
 | 819M-B-0.12-1.0 Port Aperture Reducers for Integrating Spheres Port Aperture Reducer, 1.0 in. Port, 0.125 in. Aperture, Flat Black, 819C and 819D Spheres | |||||
 | 819M-B-0.25-0.5 Port Aperture Reducers for Integrating Spheres Port Aperture Reducer, 0.5 in. Port, 0.25 in. Aperture, Flat Black, 819C and 819D Spheres | |||||
 | 819M-B-0.25-1.0 Port Aperture Reducers for Integrating Spheres Port Aperture Reducer, 1.0 in. Port, 0.25 in. Aperture, Flat Black, 819C and 819D Spheres | |||||
| 819M-B-0.50-1.0 Port Aperture Reducers for Integrating Spheres Port Aperture Reducer, 1.0 in. Port, 0.5 in. Aperture, Flat Black, 819C and 819D Spheres | |||||
 | 819M-B-0.75-1.0 Port Aperture Reducers for Integrating Spheres Port Aperture Reducer, 1.0 in. Port, 0.75 in. Aperture, Flat Black, 819C and 819D Spheres | |||||
 | 819M-G-0.50-1.0 Port Aperture Reducers for Integrating Spheres Port Aperture Reducer, 1.0 in. Port, 0.5 in. Aperture, Diffused Gold, 819C and 819D Spheres |
Features
Flat Black Coating
These port aperture reducers are available in Flat Black type coating. Flat Black type highly absorbs light and is used to imitate an open port, which does not have any reflection, and reduces introduction of ambient light into the sphere.
Customize Your Integrating Sphere
Complete your integrating sphere set-up with a wide variety of accessories. Our accessories include port plugs, port reducers, port frame reducers, fiber optic adapters, detector adapters, C-mount of SM1 type thread adapters, mounting assemblies, and a 0.5 inch to 1.0 inch port expander.
Resources
Literature
Integrating Sphere Accessories Datasheet(773.9 kB, PDF) DS-111501 Intergrating Sphere Acces-2.pdf(1.2 MB, PDF)
