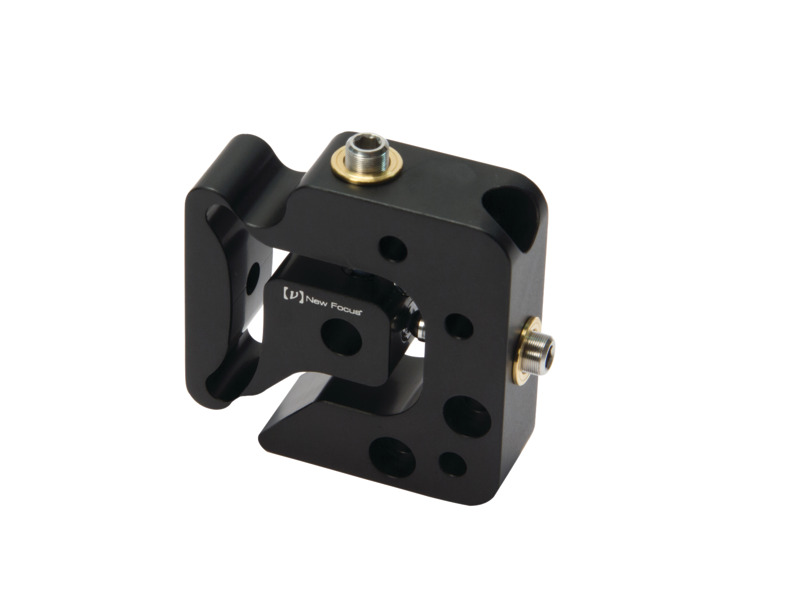

XY Fiber Launcher, Flexure Design, Bare, M4
The 9051-M XY Fiber Launcher's unique flexure design means you won't have to worry about hysteresis. Perfect for coupling light into or out of multimode fibers, it can be mounted on a flat surface or onto a post or pedestal riser. A nylon-tipped locking setscrew holds the fiber chuck in place. You can also use the Model 9051 with the Model 9092 coupler body to hold microscope objectives on the positioner. M4 mounting thread.
Resources & Downloads
Drawings And Cad
9051e-Drawing(98.7 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9092-MFiber Aligner Coupler Body, Holds 5708 or 9123, Metric | |||||
 | FPH-SFiber Holder, 80–200 micron Fiber | |||||
| FPH-S-2.5Fiber Holder, 80–200 micron Fiber, Extended | |||||
 | FPH-DJFiber Chuck, Delrin-Jawed, 300-1000 micron Fiber | |||||
 | FPH-JFiber Chuck, Teflon Lined, 125-250 micron Fiber |
