Manual Linear Stage, Gothic-Arch Bearings, 6.5 mm, M4, No Baseplate

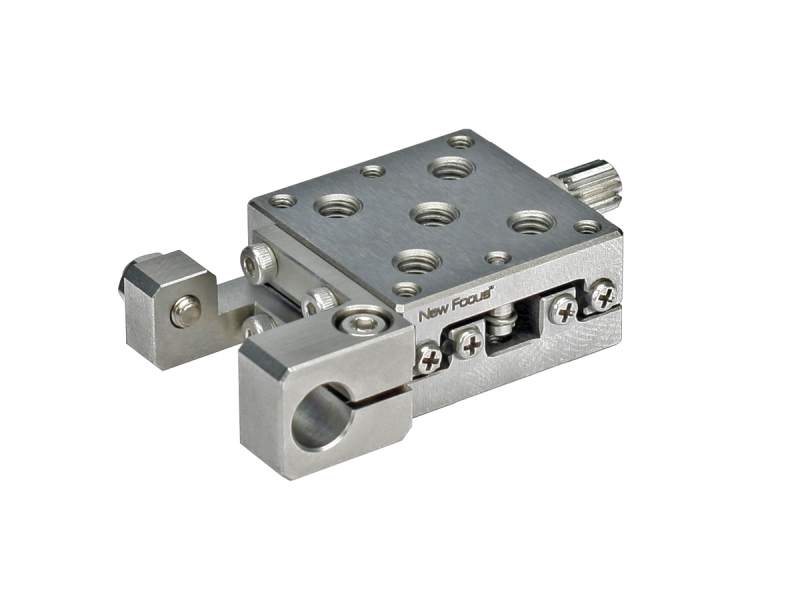

The 9061-COM-M Low Profile Gothic-Arch Translation Stage is a 6.5 mm travel, M4 thread, Stainless Steel linear translation stage with a reduced profile by eliminating the mounting plates. Call our engineers to learn more about using these stages in your system. Please note: micrometers are not included.
