6.5 mm Travel Gothic Arch Ball Bearing Stainless Steel Linear Stages

These 6.5 mm travel gothic arch linear translation stages are unique in their construction of bearing ways, machined directly into their stainless steel bodies, to provide optimum stability in temperature-fluctuating environments and the best pre-load force maintenance over time.

Bearing ways machined directly into stage body for maximum stability
Gothic bearing profile extends contact area maximizing load capacity and smoothness
Optimally maintains preloaded bearing force
Side mounted actuators provide for minimum footprint

See All Features

Description	Compatibility	Price
9061-COM 6.5 mm Travel Gothic Arch Ball Bearing StagesManual Linear Stage, Gothic-Arch Bearings, 6.5 mm, 8-32, No Baseplate	IMPERIAL	$362
9061-COM-M 6.5 mm Travel Gothic Arch Ball Bearing StagesManual Linear Stage, Gothic-Arch Bearings, 6.5 mm, M4, No Baseplate	METRIC	$365

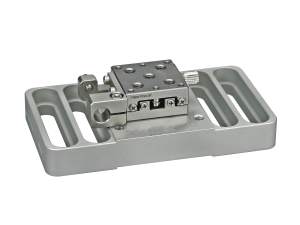

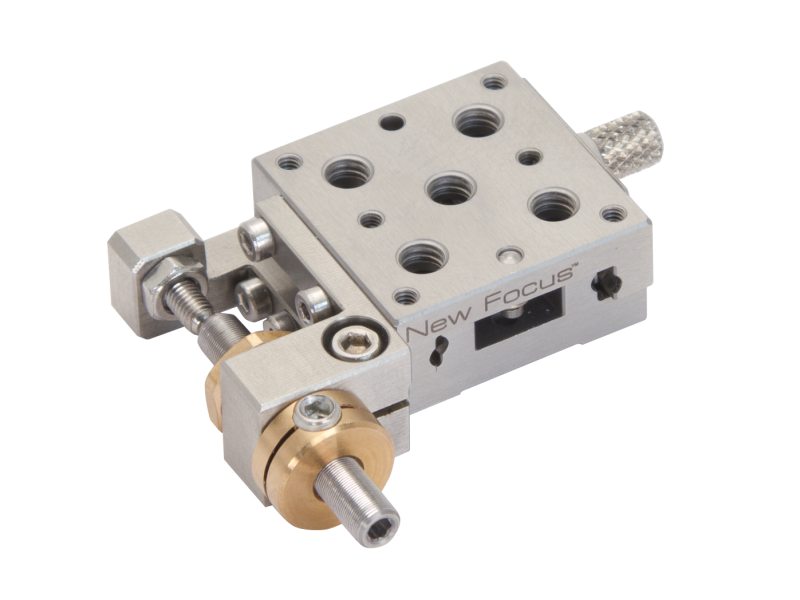

9061-X 6.5 mm Travel Gothic Arch Ball Bearing StagesManual Linear Stage, Gothic-Arch Bearings, 6.5 mm Travel, 8-32 Thread	IMPERIAL	$422
9061-X-M 6.5 mm Travel Gothic Arch Ball Bearing StagesManual Linear Stage, Gothic-Arch Bearings, 6.5 mm Travel, M4 Thread	METRIC	$422
9061-XY 6.5 mm Travel Gothic Arch Ball Bearing StagesXY Linear Stage, Gothic-Arch Bearings, 6.5 mm Travel, 8-32 Thread	IMPERIAL	$761
9061-XY-M 6.5 mm Travel Gothic Arch Ball Bearing StagesXY Linear Stage, Gothic-Arch Bearings, 6.5 mm Travel, M4 Thread	METRIC	$761
9061-XYZ 6.5 mm Travel Gothic Arch Ball Bearing StagesXYZ Linear Stage, Gothic-Arch Bearings, 6.5 mm Travel, 8-32 Thread	IMPERIAL	$1,157
9061-XYZ-M 6.5 mm Travel Gothic Arch Ball Bearing StagesXYZ Linear Stage, Gothic-Arch Bearings, 6.5 mm Travel, M4 Thread	METRIC	$1,157

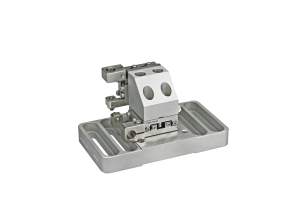

9061-XZ 6.5 mm Travel Gothic Arch Ball Bearing StagesXZ Linear Stage, Gothic-Arch Bearings, 6.5 mm Travel, 8-32 Thread	IMPERIAL	$837
9061-XZ-M 6.5 mm Travel Gothic Arch Ball Bearing StagesXZ Linear Stage, Gothic-Arch Bearings, 6.5 mm Travel, M4 Thread	METRIC	$837

Features

Machined Bearing Ways

The unique bearing design of these Gothic Series translation stages offer the ultimate stability in temperature-fluctuating environment. Unlike the multicomponent design of standard stages, which can loose their preload properties over time, Gothic Series bearing ways are machined directly out of the stage platform.

More Bearing Contact Area for Higher Loads

The gothic arch contact profile for the stainless steel ball bearings offers increased contact area to reduce bearing stresses, making the stage able to carry higher loads and more resistant to bearing-way damage.

Side Mounted Actuators

All Gothic series stages have side-mounted actuator clamps, minimizing the final footprint while maintaining a low profile height. These stages can also be stacked for multi-axis translation and include a side-mounted locking mechanism for each axis.

Configurable for Left-handed

The actuator mounts on the Gothic Series stages can be easily reconfigured for left-handed operation. The micrometer block is relocated where the push block is and vise versa. The video shows a micrometer reconfiguration of the 9062-COM stage.

Compatible Pitch and Yaw Stages

We offer compatible Pitch and Yaw Stages to be mounted on these linear stages of matched size for an additional 2 axes of adjustment. Shown here is a 9062-PY Pitch and Yaw stage mounted on a 9062-XY linear stage for complete pitch, yaw, X, and Y adjustment.

Angle Brackets for Multi-Axis Configurations

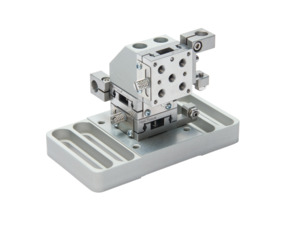

90 degree angle brackets can be used to build XYZ stage stacks like the one shown from single axis stages. Please see the accessory section for more information.

Accessories

Angle Brackets and Base Plates

Description	Compatibility	Price
9061-A Angle Bracket, 9061 Series Stages, XZ and XYZ Configurations	IMPERIAL	$97
9061-A-M Angle Bracket, 9061-M Series Stages, XZ and XYZ Configurations	METRIC	$97
9061-B Baseplate, 9061 and 9062 Series Stages, 2-56	IMPERIAL	$72
9061-B-M Baseplate, 9061-M and 9062-M Series Stages, M2	METRIC	$75
