25.4 mm Travel Gothic Arch Ball Bearing Stainless Steel Linear Stages
25.4 mm Travel Gothic Arch Ball Bearing Stainless Steel Linear Stages

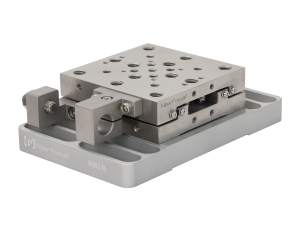

These 25.4 mm travel gothic arch linear translation stages are unique in their construction of bearing ways, machined directly into their stainless steel bodies, to provide optimum stability in temperature-fluctuating environments and the best pre-load force maintenance over time.
- Bearing ways machined directly into stage body for maximum stability
- Gothic bearing profile extends contact area maximizing load capacity and smoothness
- Optimally maintains preloaded bearing force
- Side mounted actuators provide for minimum footprint See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9063-COM 25.4 mm Travel Gothic Arch Ball Bearing StagesManual Linear Stage, Gothic-Arch Bearings, 25.4 mm, 8-32 & 1/4-20, No Baseplate | |||||
| 9063-COM-M 25.4 mm Travel Gothic Arch Ball Bearing StagesManual Linear Stage, Gothic-Arch Bearings, 25.4 mm, M4 and M6, No Baseplate | |||||

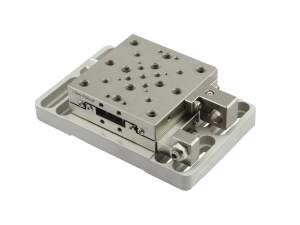

 | 9063-X 25.4 mm Travel Gothic Arch Ball Bearing StagesManual Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, 8-32 & 1/4-20 | |||||
 | 9063-X-M 25.4 mm Travel Gothic Arch Ball Bearing StagesManual Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, M4 and M6 | |||||

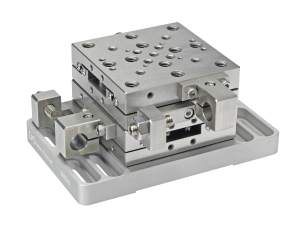

 | 9063-XY 25.4 mm Travel Gothic Arch Ball Bearing StagesXY Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, 8-32 & 1/4-20 | |||||
| 9063-XY-M 25.4 mm Travel Gothic Arch Ball Bearing StagesXY Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, M4 and M6 | |||||

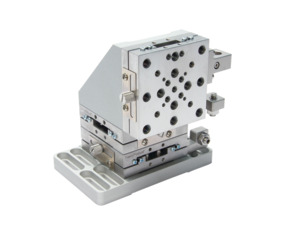

 | 9063-XYZ 25.4 mm Travel Gothic Arch Ball Bearing StagesXYZ Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, 8-32 & 1/4-20 | |||||
| 9063-XYZ-M 25.4 mm Travel Gothic Arch Ball Bearing StagesXYZ Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, M4 and M6 | |||||
 | 9063-XZ 25.4 mm Travel Gothic Arch Ball Bearing StagesXZ Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, 8-32 & 1/4-20 | |||||
| 9063-XZ-M 25.4 mm Travel Gothic Arch Ball Bearing StagesXZ Linear Stage, Gothic-Arch Bearings, 25.4 mm Travel, M4 and M6 |
Features
Machined Bearing Ways
More Bearing Contact Area for Higher Loads
The gothic arch contact profile for the stainless steel ball bearings offers increased contact area to reduce bearing stresses, making the stage able to carry higher loads and more resistant to bearing-way damage.
Side Mounted Actuators

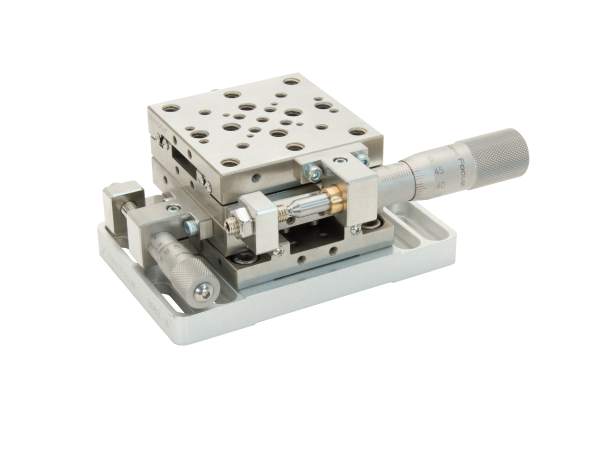

All Gothic series stages have side-mounted actuator clamps, minimizing the final footprint while maintaining a low profile height. These stages can also be stacked for multi-axis translation and include a side-mounted locking mechanism for each axis.
Configurable for Left-handed
The actuator mounts on the Gothic Series stages can be easily reconfigured for left-handed operation. The micrometer block is relocated where the push block is and vise versa. The video shows a micrometer reconfiguration of the 9062-COM stage.

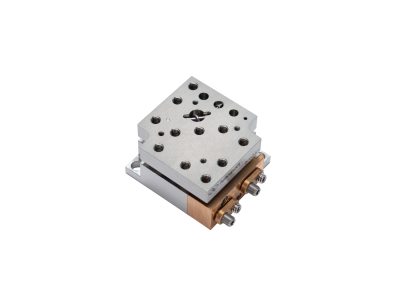

Compatible Pitch and Yaw Stages

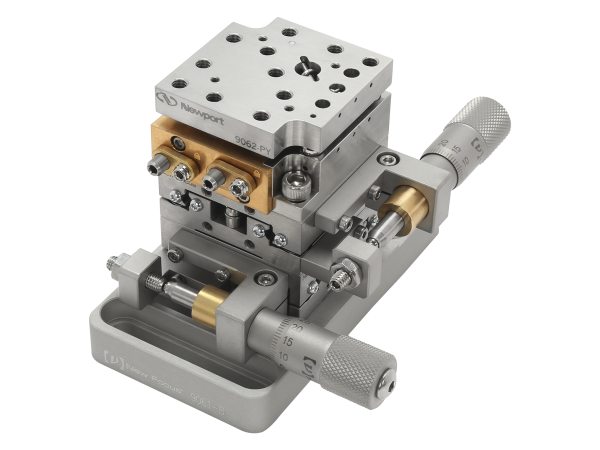

We offer compatible Pitch and Yaw Stages to be mounted on these linear stages of matched size for an additional 2 axes of adjustment. Shown here is a 9062-PY Pitch and Yaw stage mounted on a 9062-XY linear stage for complete pitch, yaw, X, and Y adjustment.

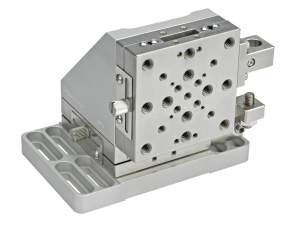

Angle Brackets for Multi-Axis Configurations
Accessories
Angle Brackets and Base Plates
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9063-A Angle Bracket, 9063 Series Stages, XZ and XYZ Configurations | |||||
| 9063-A-M Angle Bracket, 9063-M Series Stages, XZ and XYZ Configurations | |||||
 | 9063-B Baseplate, 9063 Series Stages, 2-56, 8-32 &1/4-20 | |||||
| 9063-B-M Baseplate, 9063-M Series Stages, M2, M4 & M6 |
