1.0 in. Travel Gothic-Arch Ball Bearing Picomotor Piezo Linear Stages
1.0 in. Travel Gothic-Arch Ball Bearing Picomotor Piezo Linear Stages

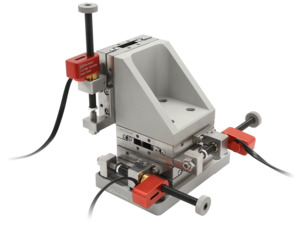

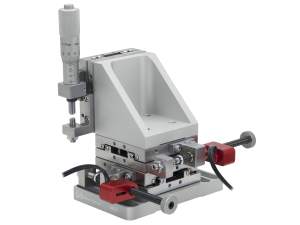

These 1 inch travel gothic-arch ball bearing linear translation stages are preconfigured with picomotor or micrometer actuators on each axis. They are unique in their construction of bearing ways, machined directly into their stainless steel bodies, to provide optimum stability in temperature-fluctuating environments and the best pre-load force maintenance over time.
- Preconfigured stages with picomotor or micrometer actuators
- Bearing ways machined directly into stage body for maximum stability
- Gothic bearing profile extends contact area maximizing load capacity and smoothness
- Optimally maintains preloaded bearing force
- Side mounted 25.4 mm travel actuators provide for minimum footprint See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9063-X-PMotorized Linear Stage, Gothic-Arch Bearing, 25.4 mm, 65x65 mm, 8-32 & 1/4-20 | |||||
 | 9063-XY-PNXY Linear Stage, Gothic-Arch, 65x65 mm, Pico X, Micro Y, 8-32, 1/4-20 | |||||
 | 9063-XY-NPXY Linear Stage, Gothic-Arch, 65x65 mm, Micro X, Pico Y, 8-32, 1/4-20 | |||||
 | 9063-XY-PPMotorized XY Linear Stage, Gothic-Arch Bearing, 25.4 mm, 65 x 65 mm, 8-32 & 1/4-20 | |||||
 | 9063-XYZ-PNNXYZ Linear Stage, Gothic-Arch, 65x65 mm, Micro YZ, Pico X, 8-32, 1/4-20 | |||||
 | 9063-XYZ-NPNXYZ Linear Stage, Gothic-Arch, 65x65 mm, Micro XZ, Pico Y, 8-32, 1/4-20 | |||||
 | 9063-XYZ-NNPXYZ Linear Stage, Gothic-Arch, 65x65 mm, Micro XY, Pico Z, 8-32, 1/4-20 | |||||
 | 9063-XYZ-PPNXYZ Linear Stage, Gothic-Arch, 65x65 mm, Micro Z, Pico XY, 8-32, 1/4-20 | |||||
 | 9063-XYZ-PNPXYZ Linear Stage, Gothic-Arch, 65x65 mm, Micro Y, Pico XZ, 8-32, 1/4-20 | |||||
 | 9063-XYZ-NPPXYZ Linear Stage, Gothic-Arch, 65x65 mm, Micro X, Pico YZ, 8-32, 1/4-20 | |||||
 | 9063-XYZ-PPPMotorized XYZ Stage, Gothic-Arch Bearing, 65 x 65 mm, 25.4 mm, 8-32 & 1/4-20 | |||||
| 9063-X-P-MMotorized Linear Stage, Gothic-Arch Bearing, 65x65 mm, 25.4 mm, M4 & M6 | |||||
| 9063-XY-PN-MXY Linear Stage, Gothic-Arch, 65 x 65 mm, Pico X, Micro Y, M4 and M6 | |||||
| 9063-XY-NP-MXY Linear Stage, Gothic-Arch, 65 x 65 mm, Micro X, Pico Y, M4 and M6 | |||||
| 9063-XY-PP-MMotorized XY Linear Stage, Gothic-Arch Bearing, 65x65 mm, 25.4 mm, M4 & M6 | |||||
| 9063-XYZ-PNN-MXYZ Linear Stage, Gothic-Arch, 65 x 65 mm, Micro YZ, Pico X, M4 and M6 | |||||
| 9063-XYZ-NPN-MXYZ Linear Stage, Gothic-Arch, 65 x 65 mm, Micro XZ, Pico Y, M4 and M6 | |||||
| 9063-XYZ-NNP-MXYZ Linear Stage, Gothic-Arch, 65 x 65 mm, Micro XY, Pico Z, M4 and M6 | |||||
| 9063-XYZ-PPN-MXYZ Linear Stage, Gothic-Arch, 65 x 65 mm, Micro Z, Pico XY, M4 and M6 | |||||
| 9063-XYZ-PNP-MXYZ Linear Stage, Gothic-Arch, 65 x 65 mm, Micro Y, Pico XZ, M4 and M6 | |||||
| 9063-XYZ-NPP-MXYZ Linear Stage, Gothic-Arch, 65 x 65 mm, Micro X, Pico YZ, M4 and M6 | |||||
| 9063-XYZ-PPP-MMotorized XYZ Linear Stage, Gothic-Arch Bearing, 65x65 mm, 25.4 mm, M4 & M6 |
Notes:
The included picomotor is model 8303.
The included micrometer is model 9356.
Specifications
- Travel Range1.0 inch (25.4 mm)
- Minimum Incremental Motion<30 nm
- Centered Load Capacity173 N
- Vertical Load Capacity35 N
- BearingsGothic Arch Bearings
- MaterialStainless Steel
- FeedbackOpen Loop
- Cable Length2.1 m
- Connector Type4-Pin
- Platform Size65 x 65 mm
- Operating Temperature10 to 40°C
Features
Machined Bearing Ways
The unique bearing design of these Gothic Series translation stages offer the ultimate stability in temperature-fluctuating environment. Unlike the multicomponent design of standard stages, which can loose their preload properties over time, Gothic Series bearing ways are machined directly out of the stage platform.
More Bearing Contact Area for Higher Loads
The gothic arch contact profile for the stainless steel ball bearings offers increased contact area to reduce bearing stresses, making the stage able to carry higher loads and more resistant to bearing-way damage.
Side Mounted Actuators
These gothic-arch ball bearing stages feature side-mounted actuator clamps, minimizing the final footprint while maintaining a low profile height. Motorized axes feature our 8303 picomotor actuator and provide 25.4 mm of travel. Manual axes feature our 9356 smooth-bore micrometer heads and provide 25.4 mm of travel.
< 30 nm Resolution
Our Picomotor actuators have a step size of < 30 nm, allowing for very small, controlled movements of the gothic-arch bearing linear stage.
Easy-to-Use, Flexible Controllers and Drivers
Our Open-Loop Picomotor controllers and drivers are modular. You can daisy-chain up to 31 drivers together with four channels each, so you can have a network of up to 124 standard Picomotor actuators. You have two interface options with the controller system: hand pad or computer, both providing plug-and-play use. Alternatively, you may choose to use our TTL/Analog Picomotor driver.
Set-and-Forget Long-Term Stability
The Picomotor actuator moves when voltage is applied to the piezo, changing its length and in turn moving the jaws which turn the screw. When no power is applied, the actuator does not move. You can feel confident that your linear translation stage will stay put, even when you power down your system.
Accessories
Picomotor Open Loop Controllers
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 8703Picomotor Driver Module, Single-Axis, TTL/Analog | |||||
 | 8712Picomotor Driver, Single-Axis, PCB-Mountable | |||||
| 8742Motion Controller, Picomotor, Open-Loop, 4 Channel | |||||
 | 8742-4-KITPicomotor Controller Kit, Four-Axis | |||||
 | 8742-8-KITPicomotor Controller Kit, Eight-Axis | |||||
 | 8742-12-KITPicomotor Controller Kit, Twelve-Axis |
Angle Brackets and Base Plates
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 9063-AAngle Bracket, 9063 Series Stages, XZ and XYZ Configurations | |||||
| 9063-A-MAngle Bracket, 9063-M Series Stages, XZ and XYZ Configurations | |||||
 | 9063-BBaseplate, 9063 Series Stages, 2-56, 8-32 &1/4-20 | |||||
| 9063-B-MBaseplate, 9063-M Series Stages, M2, M4 & M6 |
