XYZ Linear Stage, 0.5 in. Travel, 4-40, 8-32, 1/4-20, Vacuum
XYZ Linear Stage, 0.5 in. Travel, 4-40, 8-32, 1/4-20, Vacuum
Model: 9066-XYZ-R-V
Product Series Overview

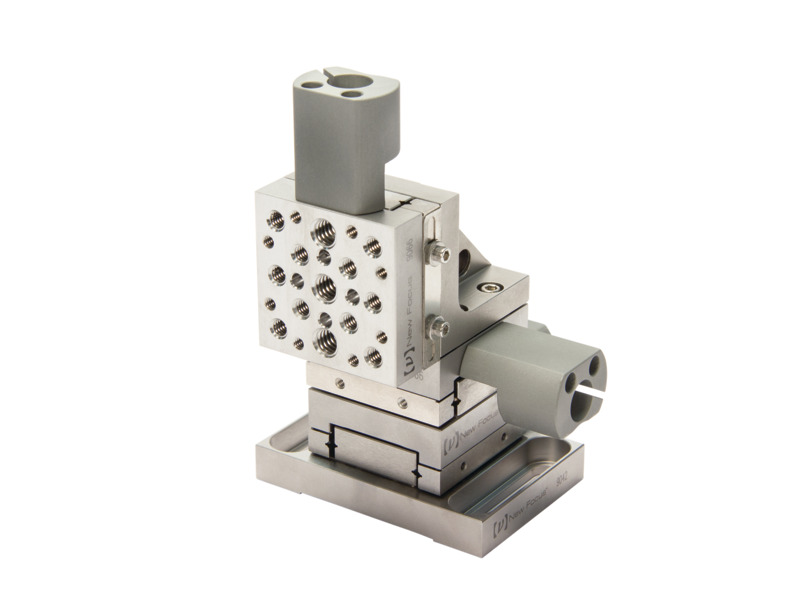

0.5 in. Travel Vacuum Compatible Crossed Roller Bearing Linear StagesThe 9066-XYZ-R-V Vacuum Compatible Right-Handed Configured Stainless Steel Crossed-Roller Bearing Linear Translation Stage is a 0.5 inch travel linear translation stage that provides low-profile, high-stability, linear translation for systems that do not need vertical adjustment. These stages are clean assembled and utilize low vapor pressure grease appropriate for vacuum and clean environments. 9066 series stages feature a generous pattern of eight 4-40. ten 8-32 and three 1/4-20 threaded mounting holes. Actuators are not included. We recommend the 8301-V vacuum compatible picomotor actuators for vacuum applications.
Resources & Downloads
Drawings And Cad
9066-XYZ-L(367.3 kB, PDF) 9066-XYZ-La-Drawing.pdf(187.9 kB, PDF)
