Thermopile Sensor, 10 W, 16 mm, 0.19-11 µm

Model: 919P-010-16

$1,036

Compare

Product Series Overview

The 919P-010-16 Thermopile Sensor is a general purpose laser power sensor for measuring laser power up to 10 W. It's BB absorber type is spectrally flat and covers the wavelength range 190 nm to 11 µm. It has an active diameter of 16 mm and can measure power from 10 mW to 10W and single shot energy from 6 mJ to 2 J. It has a 1/4-20 tapped hole for post or plate mounting and includes a 2.25 inch long 1/2 inch diameter post with a 1/4-20 tapped hole on both ends.

Specifications

Technical Specs

Absorber Type
BB - Broadband General Purpose
Detector Type
Thermopile
Spectral Range
0.19 to 11 µm
Maximum Measurable Power
10 W
Sensor Size
Ø16 mm
Maximum Power Density
28 kW/cm²
Maximum Energy Density
<100 ns, 0.3 J/cm²
0.5 ms, 2 J/cm²
2 ms, 2 J/cm²
10 ms, 2 J/cm²
Power Noise Level
0.2 mW
Power Range
10 mW - 10 W
Minimum Energy
6 mJ
Cooling
Heat Sink
Connector Type
DB15
Rise Time
0.8 s

Linearity
±1 %
Calibration Uncertainty
±1.9%
Repeatability
±0.5 %
Beam Size Dependence
±0.5 %
Detector Active Area
2.01 cm²
Operating Temperature Range
15°C to 35°C, <70% RH, non-condensing
Storage Temperature Range
0°C to 50°C, <90% RH
Cable Length
1.5 m
Dimensions
Ø65 x 33.5 mm
Weight
0.2 kg
RoHS
Compliant

Absorber Type
BB - Broadband General Purpose
Detector Type
Thermopile
Spectral Range
0.19 to 11 µm
Maximum Measurable Power
10 W
Sensor Size
Ø16 mm
Maximum Power Density
28 kW/cm²
Maximum Energy Density
<100 ns, 0.3 J/cm²
0.5 ms, 2 J/cm²
2 ms, 2 J/cm²
10 ms, 2 J/cm²
Power Noise Level
0.2 mW
Power Range
10 mW - 10 W
Minimum Energy
6 mJ
Cooling
Heat Sink
Connector Type
DB15
Rise Time
0.8 s

Linearity
±1 %
Calibration Uncertainty
±1.9%
Repeatability
±0.5 %
Beam Size Dependence
±0.5 %
Detector Active Area
2.01 cm²
Operating Temperature Range
15°C to 35°C, <70% RH, non-condensing
Storage Temperature Range
0°C to 50°C, <90% RH
Cable Length
1.5 m
Dimensions
Ø65 x 33.5 mm
Weight
0.2 kg
RoHS
Compliant

Resources & Downloads

Drawings And Cad

919P-010-16(1.2 MB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		919P-FCOptical Fiber Adapter, FC/PC, 919P Series Thermopile Power Sensors	UNIVERSAL			$194
		919P-SMAFiber Adaptor, SMA, 919P Series Thermopile Power Sensors	UNIVERSAL			$121

Compatible

Description	Compatibility	Price
1938-RAdvanced Optical Power & Meter, Benchtop, Single Channel	UNIVERSAL	$3,662
2938-RAdvanced Optical Power & Meter, Benchtop, Dual Channel	UNIVERSAL	$4,406
1936-ROptical Power Meter, Benchtop, Single Channel, Power and Energy, RoHS	UNIVERSAL	$4,253
2936-ROptical Power Meter, Benchtop, Dual Channel, Power and Energy, RoHS	UNIVERSAL	$5,118
843-ROptical power meter, economical, handheld, laser power and energy	UNIVERSAL	$1,067
844-PE-USBVirtual Power Meter, Optical Power and Energy, USB	UNIVERSAL	$885

Frequently Purchased Together

Description	Compatibility	Price
1919-ROptical Power Meter, Handheld, High Performance	UNIVERSAL	$1,901
843-R-USBOptical Power Meter, Economical Handheld, Laser Power & Energy	UNIVERSAL	$1,342
843-ROptical power meter, economical, handheld, laser power and energy	UNIVERSAL	$1,067

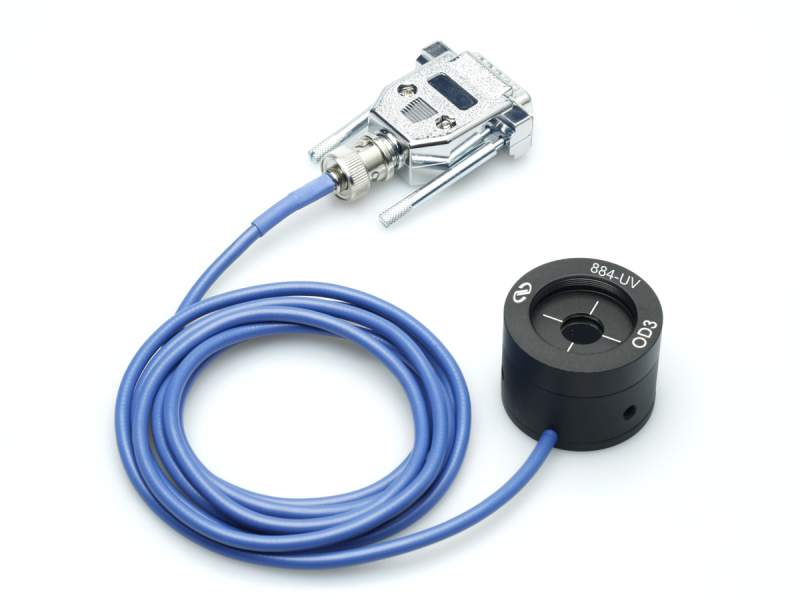

818-UV/DBOptical Power Detector, UV Silicon, 200-1100nm, DB15 Calibration Module	UNIVERSAL	$734
