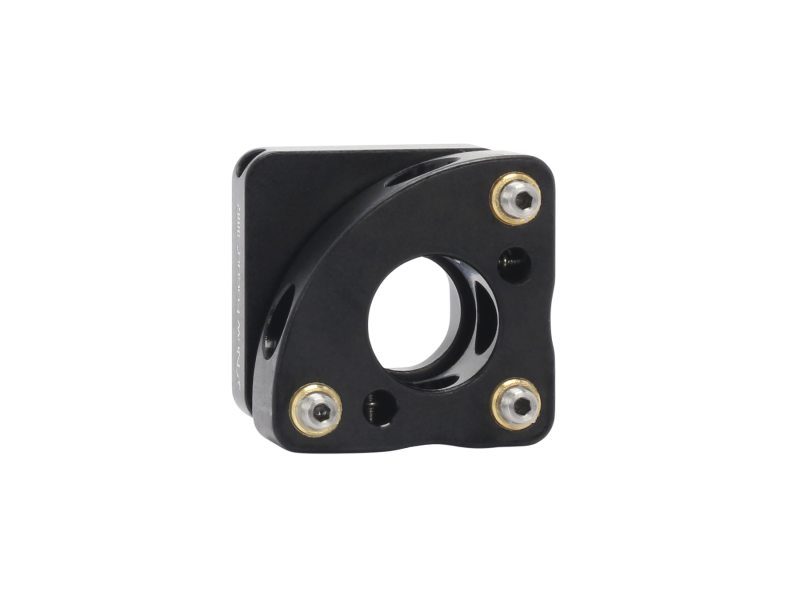

Mirror Mount, Pint-Sized, Center, 0.5 in., 3 Allen-Keys

The 9882-K Pint Sized Center Mirror Mount holds 0.5 in. diameter optics, and is only half the size of our Classic mounts, yet provides the same high level of performance you've come to count on. With a 0.5 in. beam height, 8-32 (M4) mounting holes, and Allen-key adjustment this anodized-aluminum mount is completely compatible with all the other mounts, posts, and pedestals you already own.

Specifications

Technical Specs

Mechanism
Kinematic
Optic Diameter
12.7 mm
Number of Actuators
3
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
8.8 arc sec
Angular Range
±4°

Optic Loading
Front
Material
Anodized Aluminum
Drive Type
Allen-Key, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
12.7 mm

Mechanism
Kinematic
Optic Diameter
12.7 mm
Number of Actuators
3
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
8.8 arc sec
Angular Range
±4°

Optic Loading
Front
Material
Anodized Aluminum
Drive Type
Allen-Key, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
12.7 mm

Resources & Downloads

Drawings And Cad

9882d-Drawing(89.2 kB, PDF)
