Flex Lock Optical Post, 12.7 mm Diameter Post, M6 and M4 Thread

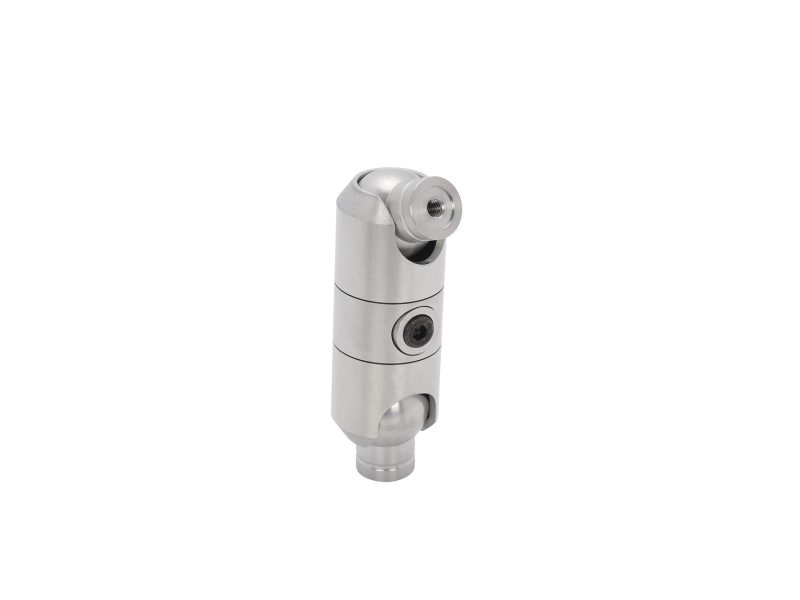

The 9940-M Flex-Lock Post is perfect for holding an IR viewer or camera at any location, leaving your hands free to do your experiment. The Model 9940 can support more than a 100-inch-pound (11 N⋅m) load at any location or angle. Each threaded end rotates 360 degrees about its own axis and 360° about the main axis, and swings 90° to the side. Once in position, a single screw simultaneously locks all joints. This version has an M6 tapped hole at one end and an M4 tapped hole at the other.

Specifications

Technical Specs

Type
Flex Lock Post
Thread Type
M4 and M6
Pack Quantity
1

Type
Flex Lock Post
Thread Type
M4 and M6
Pack Quantity
1

Resources & Downloads

Drawings And Cad

9940e-Drawing(84.2 kB, PDF)

Related Products

Accessories

Description	Compatibility	Price
PRC-1Optical Rail Carrier, 1.0 in. Length, 1/4-20 Thread, PRL Series	IMPERIAL	$106
PRC-3Optical Rail Carrier, 3.0 in. Length, 1/4-20 Thread, PRL Series	IMPERIAL	$137
PRL-6Precision Optical Rail, 6.56 in. Length, 3.93 in. Width, 6 in. Scale	UNIVERSAL	$208
PRXRail Indexing Block, 0.5 in. (12.7 mm) Length, No Holes, PRL Series	UNIVERSAL	$76
PRL-12Precision Optical Rail, 12.46 in. Length, 3.93 in. Width, 12 in. Scale	UNIVERSAL	$297

Similar

Description	Compatibility	Price
9935Optical Post Clamp, Right-Angle, 0.5 in. Diameter Optical Posts	UNIVERSAL	$31
9411-MPrism Mount, 0.25 to 1.00 in., ±5 °, M4	METRIC	$494

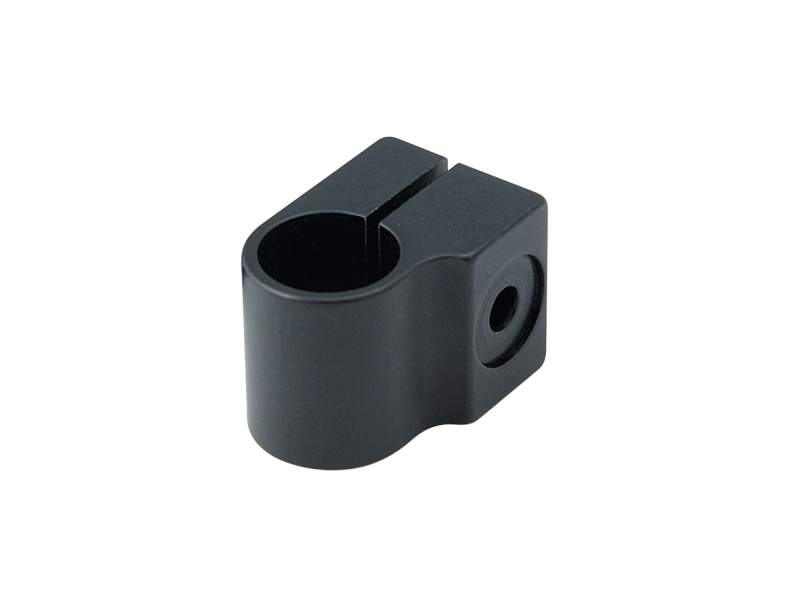

9917-MPost Clamp, 12.7 mm Diameter Optical Posts, M4 Thread	METRIC	$29
