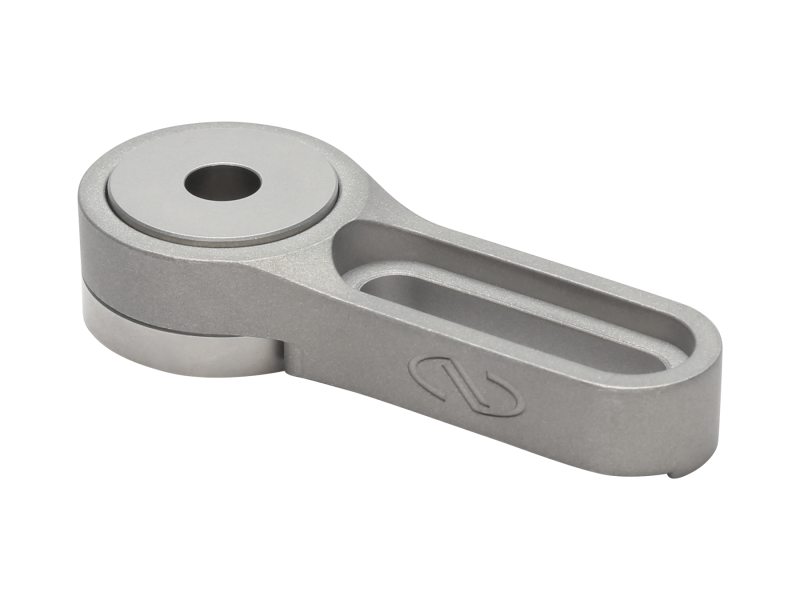

Slotted Base, Magnetic Swivel, 1/4-20 (M6) Through-Hole

Stainless Steel Swivel Slotted Bases

The APHB swivel base utilizes a magnet for initial positioning and a swivel clamp for aligning with optical table holes for final lock down. The slot accepts a ¼-20 or M6 screw.

Specifications

Technical Specs

Thread Type
1/4-20 (M6) CLR

Thread Type
1/4-20 (M6) CLR

Resources & Downloads

3D Product Models

2D Product Drawings

APHB Dimensions(147.4 kB, PDF)

Other

APHB RoHS2-2021 Certificate(676.1 kB, PDF)
