Indexing Post Collar Pack, 0.5 in. Optical Posts, Qty 5

Non-Bridging Slotted-Base Optical Post Holders

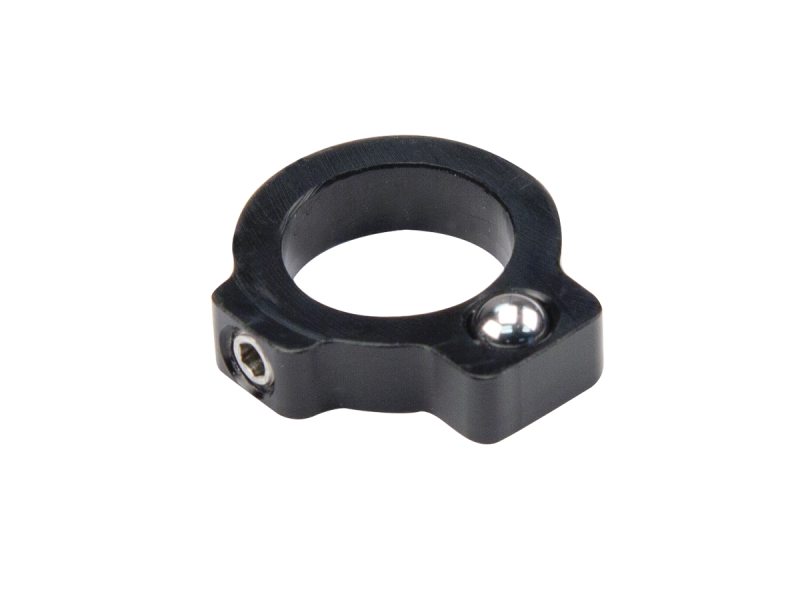

The BPH-C-5 is a pack of indexing post collars for use with the BPH-series of Multifunction Post Holders. The top surface of the BPH post holder has a series of kinematic indentations which, when used with the BPH-C-5 Post Collar, provide repeatable rotational alignment and indexing at 45-degree increments.

Specifications

Technical Specs

Type
Post Collar Pack
Height
25.4 mm
Thread Type
Set screw
Material
Aluminum

Pack Quantity
5
Inside Diameter
12.7

Type
Post Collar Pack
Height
25.4 mm
Thread Type
Set screw
Material
Aluminum

Pack Quantity
5
Inside Diameter
12.7

Resources & Downloads

Drawings And Cad

BPH-C-320(80.6 kB, PDF)

Other

BPH-C-5 RoHS Certificate(277.2 kB, PDF)
BPH-C-5_RoHS2021.pdf(679.5 kB, PDF)
