Optical Post Clamp, Adjustable Angle, 0.5 in. Diameter Optical Posts
Optical Post Clamp, Adjustable Angle, 0.5 in. Diameter Optical Posts
Model: CA-2
Product Series Overview

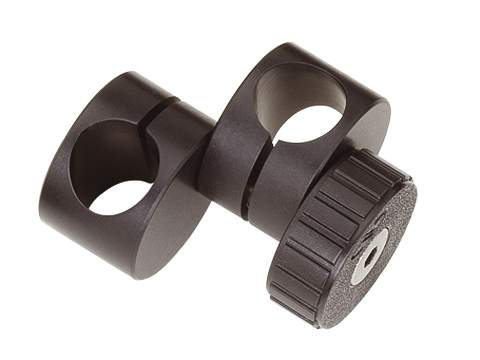

Post-Joining Angle ClampsThe CA-2 Adjustable-Angle Post Clamp holds two SP Series 1/2 in. (12.7 mm) posts, at an arbitrary angle with respect to each other. Both posts are tightened simultaneously with the knurled knob.
Resources & Downloads
Drawings And Cad
CA-2-25 per-S(79.6 kB, PDF)
Other
CA-2 RoHS Certificate(277.9 kB, PDF) CA-2_RoHS2021.pdf(680.8 kB, PDF)
