Right-Angle Post Clamp, 0.313 in. Diameter Optical Posts, 8-32 Thread

Miniature Post Mounting Accessories

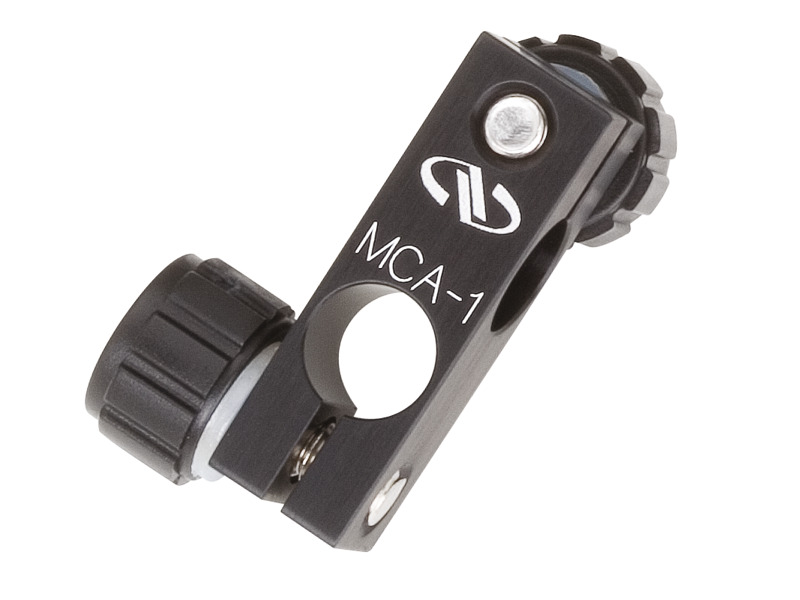

The MCA-1 Right-Angle Post Clamp mounts two TSP Series 0.313 in. posts at 90° to each other. The clamping screws permit fast, secure post mounting with only moderate finger pressure. 8-32 Thread.

Specifications

Technical Specs

Type
Right-Angle Post Clamp
Thread Type
8-32
Material
Aluminum

Diameter
7.9 mm

Type
Right-Angle Post Clamp
Thread Type
8-32
Material
Aluminum

Diameter
7.9 mm

Resources & Downloads

Drawings And Cad

MCA-1ART-25perc-S(79.4 kB, PDF)

Other

MCA-1 RoHS Certificate(277.6 kB, PDF)
