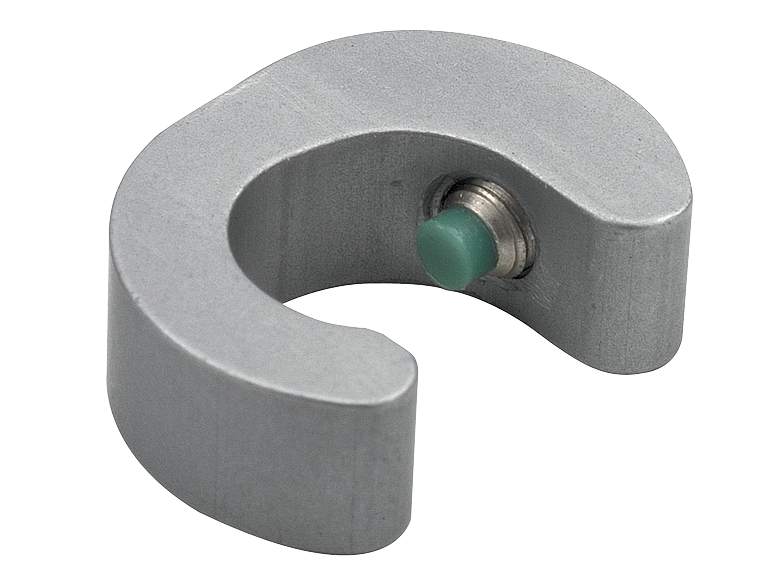

Post Collar, 0.313 in. Diameter Optical Posts

The C-0.3 Miniature Post Collar provides an index point for a specific post height, allowing a 0.313 in. (7.9 mm) post to be removed from a post holder and returned to the same height. It also allows a post to be rotated in a post holder while maintaining a fixed height. Our new post collars can be added or removed from a post at any time, without taking apart your assembly.

Specifications

Technical Specs

Type
Post Collar
Height
6.4 mm

Material
Aluminum
Diameter
7.9 mm

Type
Post Collar
Height
6.4 mm

Material
Aluminum
Diameter
7.9 mm

Resources & Downloads

3D Product Models

2D Product Drawings

C-0pt3-S(152 kB, PDF)

Other

C-0.3 RoHS Certificate(278.6 kB, PDF)
C-0-3_RoHS2021.pdf(682.6 kB, PDF)
