Adjustable-Angle Post Clamp, 8 mm Diameter Optical Posts
Adjustable-Angle Post Clamp, 8 mm Diameter Optical Posts
Model: M-MCA-2
Product Series Overview

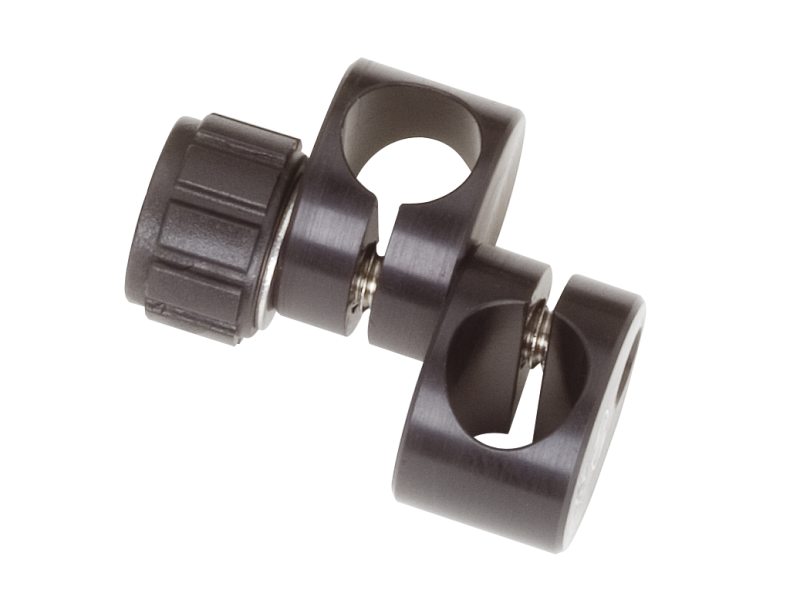

Miniature Post Mounting AccessoriesThe M-MCA-2 Adjustable-Angle Post Clamp holds two TSP Series 8.0 mm posts, at an arbitrary angle with respect to each other. Both posts are tightened simultaneously with the knurled knob. M4 Thread.
Resources & Downloads
Drawings And Cad
MCA-2ART-25per-S(92.7 kB, PDF)
Other
M-MCA-2 RoHS Certificate(278.6 kB, PDF)
