Right-Angle Post Clamp, 7.9 mm Diameter Optical Posts, M4 Thread

Miniature Post Mounting Accessories

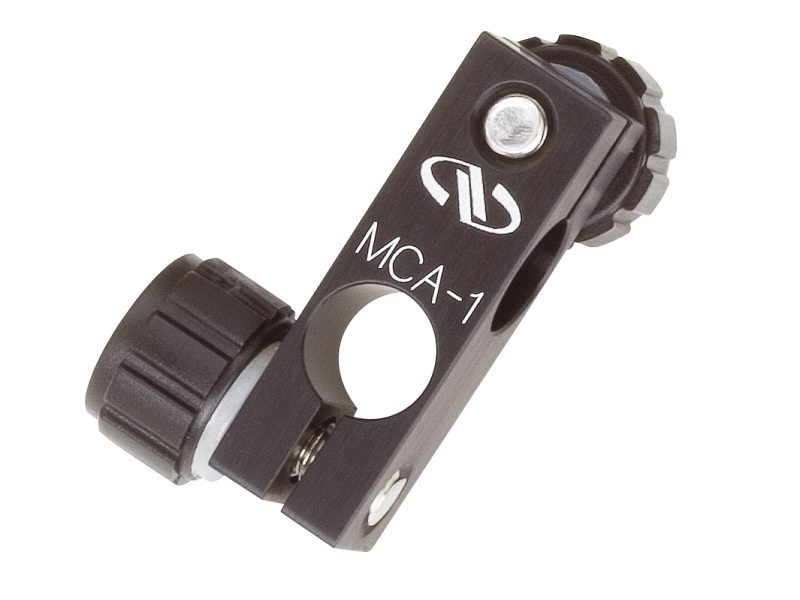

The M-MCA-1 Right-Angle Post Clamp mounts two TSP Series 8.0 mm posts at 90° to each other. The clamping screws permit fast, secure post mounting with only moderate finger pressure. M4 Thread.

Specifications

Technical Specs

Type
Right-Angle Post Clamp
Thread Type
M4

Diameter
7.9 mm

Type
Right-Angle Post Clamp
Thread Type
M4

Diameter
7.9 mm

Resources & Downloads

3D Product Models

2D Product Drawings

MCA-1ART-25perc-S(79.4 kB, PDF)

Other

M-MCA-1 RoHS Certificate(278.2 kB, PDF)
